Benefits

  • Adapts to most barn configurations.
  • Works with several types of bedding (green bedding, straw, saw dust).
  • Less waste of bedding material.
  • Greatly reduces manual labor.
  • Easy adjustment of spreading pattern to optimize the efficiency of different types of bedding.
  • Mounted on a rail: can cover two rows of stall with one rail
  • Entirely made of stainless steel
  • Battery operated for easy, low cost of installation
  • Easily controlled remotely with an Android tablet (included)
Equipped with a programmable controller

Equipped with a programmable controller

This programmable controller automatically manages the loading and distribution of bedding into stalls or pens.

Features

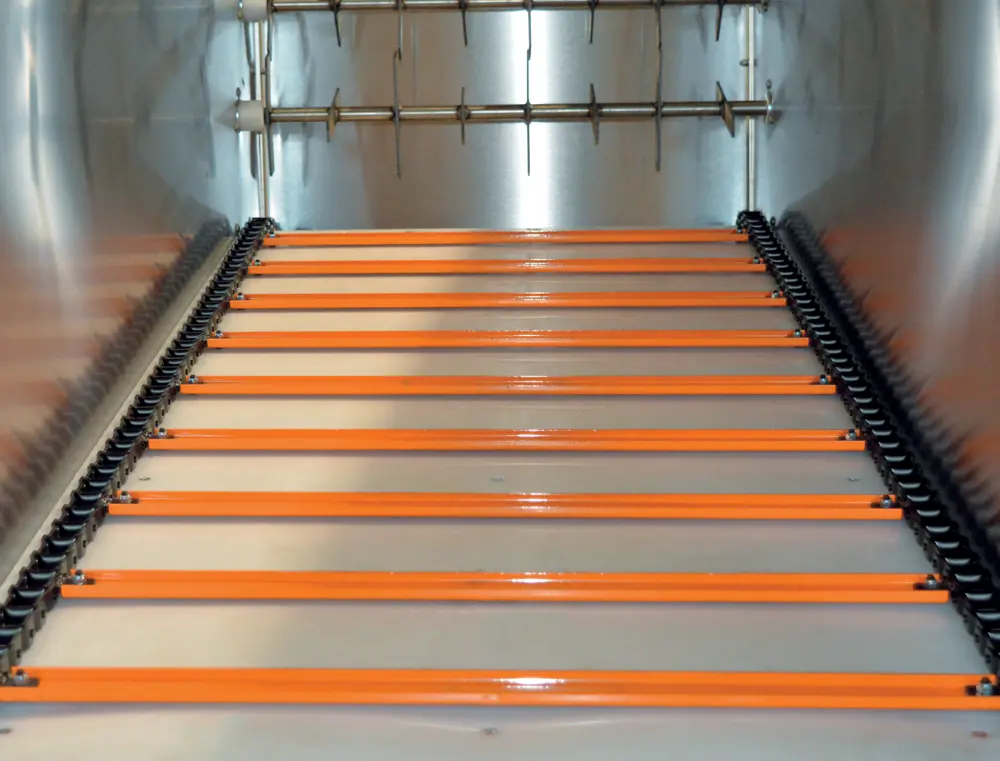

Apron Chain

Apron Chain

The apron chain speed can be adjusted to optimise the spreading for different types of bedding material. The apron carries the bedding to the beaters, where it is fluffed up before dropping into the discharge.

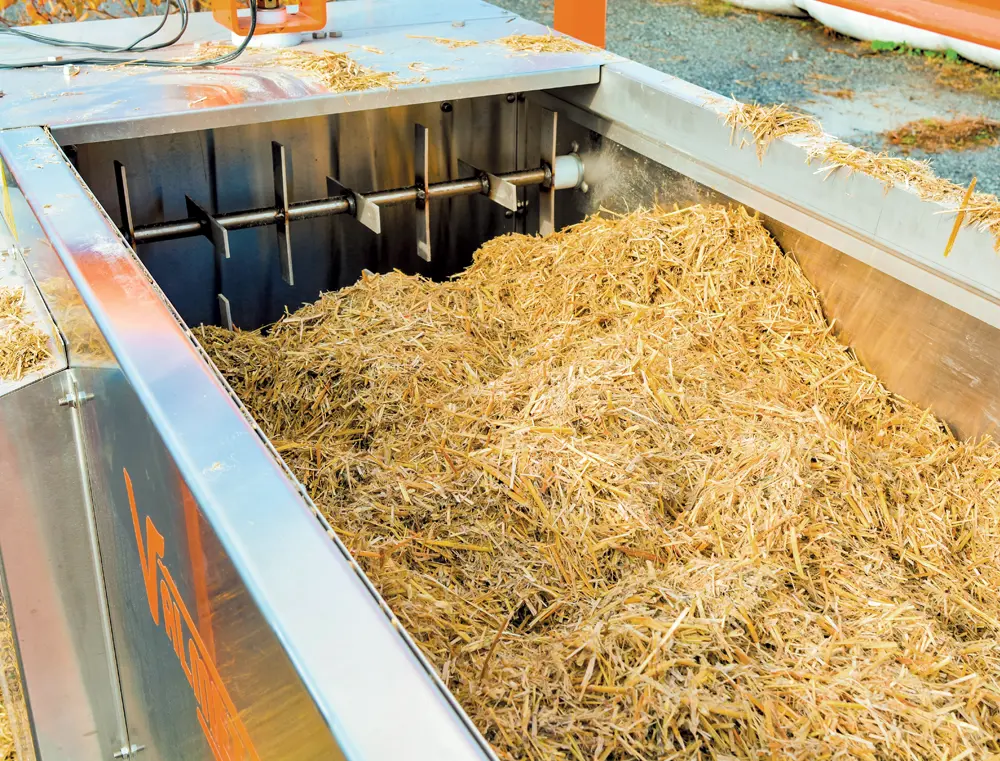

Load cell

Load cell

Loading and unloading of the correct amount of bedding is automatically controlled by the electronic scale in the panel control box.

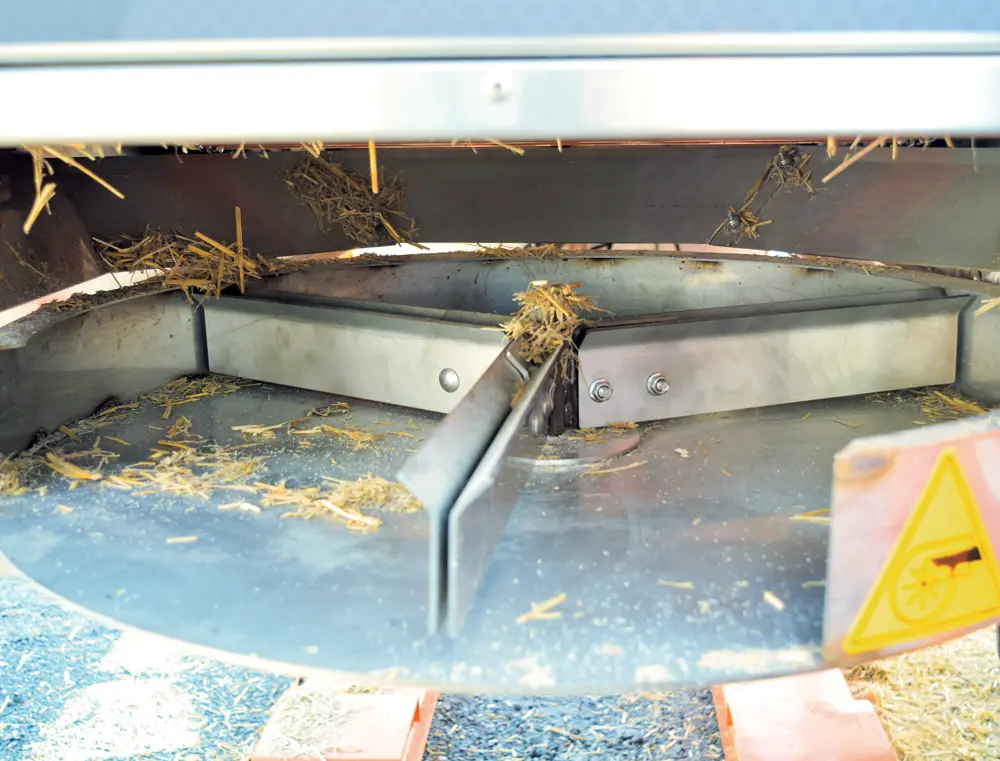

2 discharge modes

2 discharge modes

Direct discharge drops bedding directly below the robot, At low speed, this mode allowing one-pass coverage of double-row stalls. The optional power spinner distributes bedding to either side of the robot to cover wide pens in a single pass.

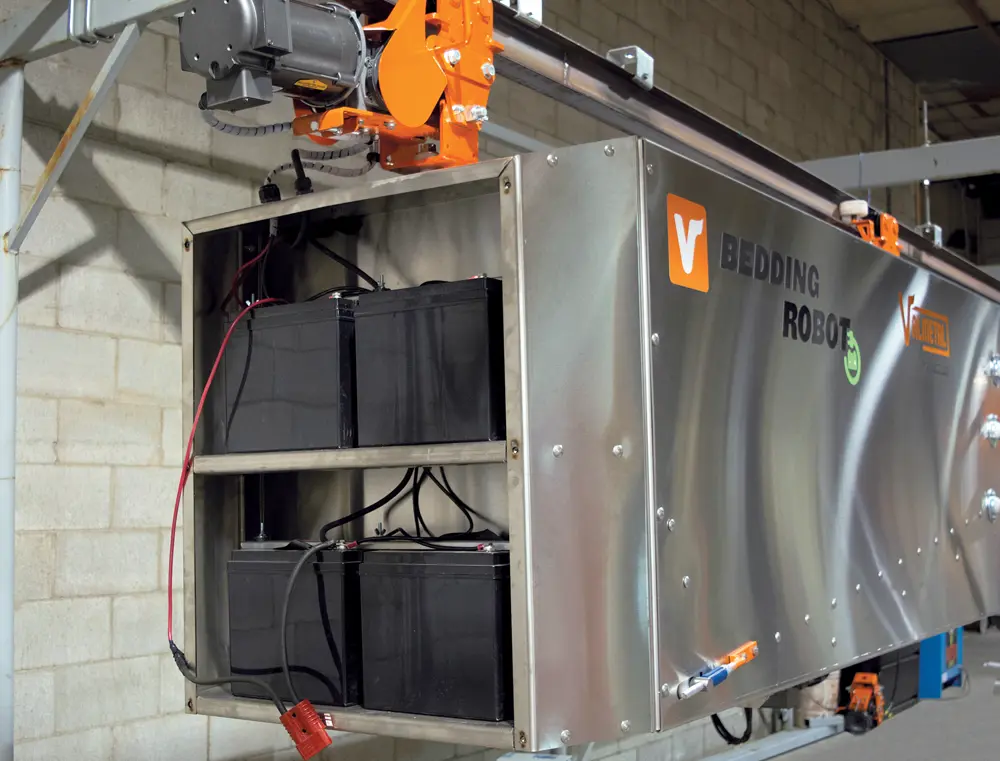

 4 rechargeable batteries

4 rechargeable batteries

The charging sequence starts as soon as the robot stops at the charging station. The intelligent battery charger mon-itors the battery condition and stops automatically when the batteries are totally charged.

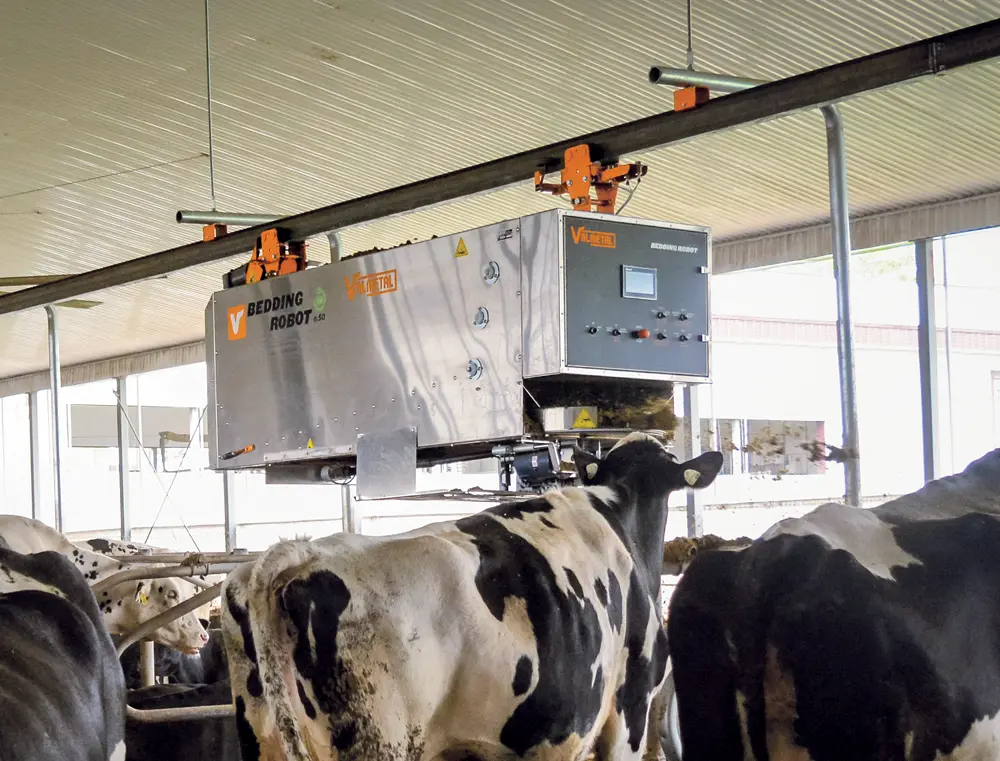

Versatile Rail System

Versatile Rail System

The robot easily and silently makes its way through the entire barn on this overhead rail to distribute the bedding without disturbing the animals. Rail deviators shorten the routes to deliver bedding to the maximum number of stalls in the minimum amount of time.

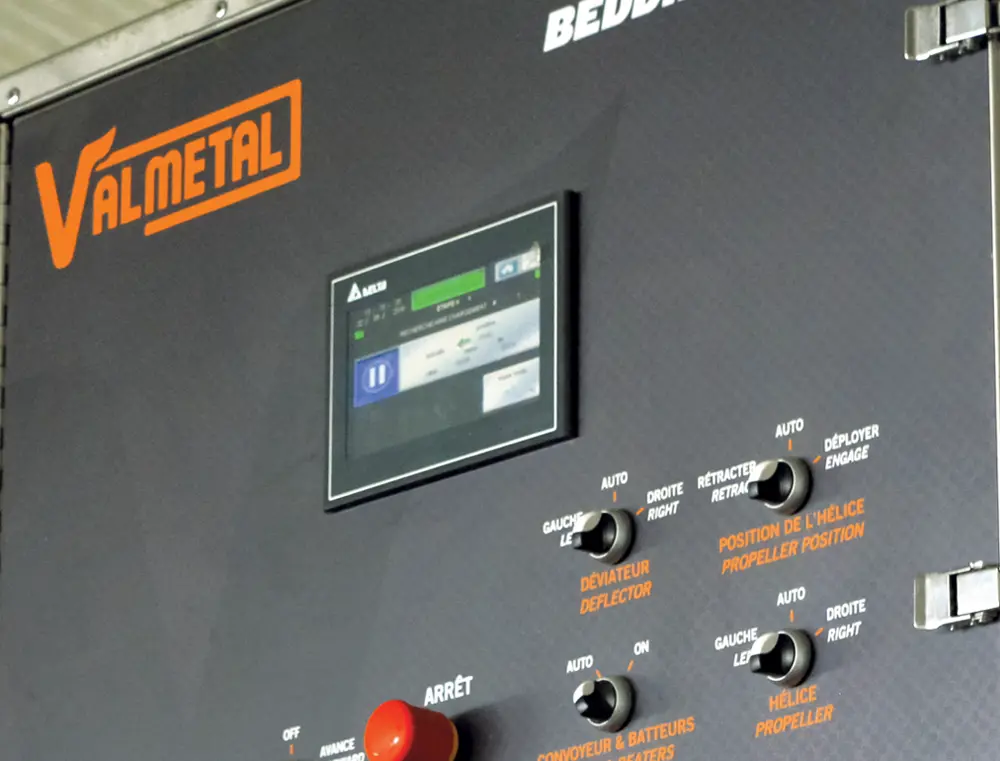

Control Panel & Tablet

Control Panel & Tablet

The 7” (18 cm) touch-screen makes it easy to set the desired routes, the optimum spreading pattern, and the amount of bedding delivered to each area.

Specifications

Length Width Height Weight Tub capacity
128'' (324 cm) 39'' (98 cm) 36'' (92 cm) 1340 lb (608 kg) 50 ft3 (1.4 m3)
