Benefits

  • Tumble mixing process that preserves the quality of fiber.
  • Operates at low horsepower.
  • Design that allows fast and homogeneous mixing as well as continuous unloading.
  • Low maintenance.
  • Able to cut and process long fiber.
  • Excellent choice for high-grain rations.
  • Planetary drive system
  • 1/4’’ (6 mm) UHMW liner
  • 4-point weighbar load cell system
  • Fully welded tub and frame
  • Electric or manual door opener
  • Direct drive system Optional
  • 1/8’’ (3 mm) stainless steel end liners Optional
  • Hardened knives Optional
  • Magnet Optional
Optimal movement of ingredients

Optimal movement of ingredients

The tub and auger are lined with a smooth, abrasion-resistant polymer that requires less energy and promotes fast ingredient movement.

Features

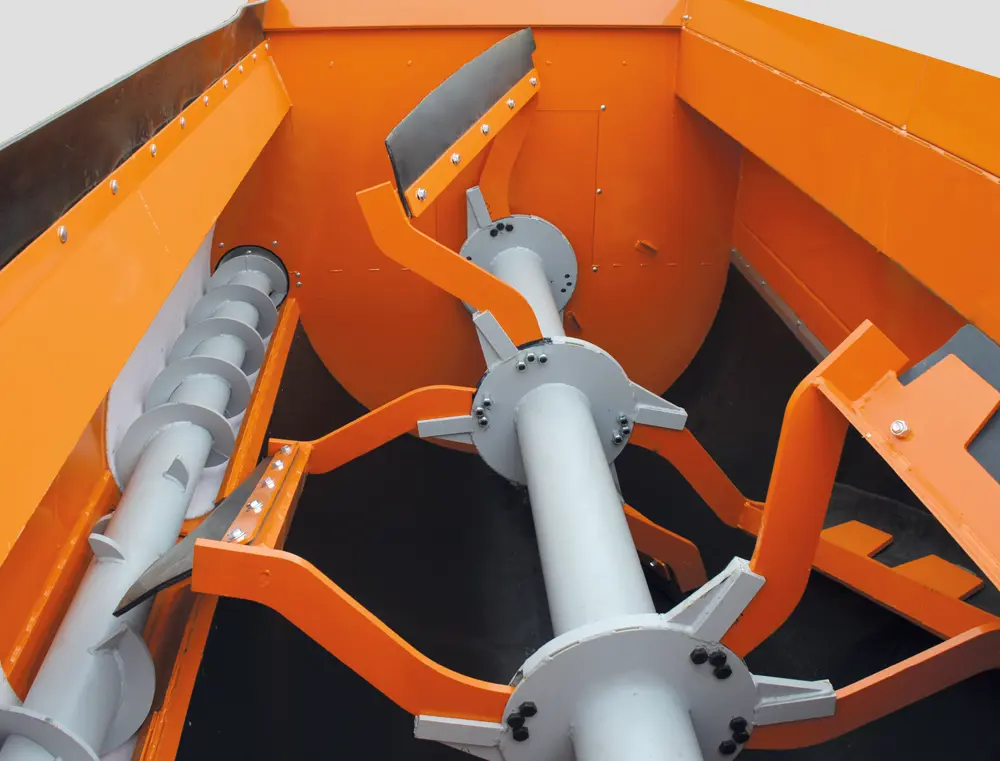

Mixing

Mixing

Equipped with a powerful rotor with angled blades to create a tumbling effect. The rotor gently lifts material into the auger for fast recirculation or unloading.

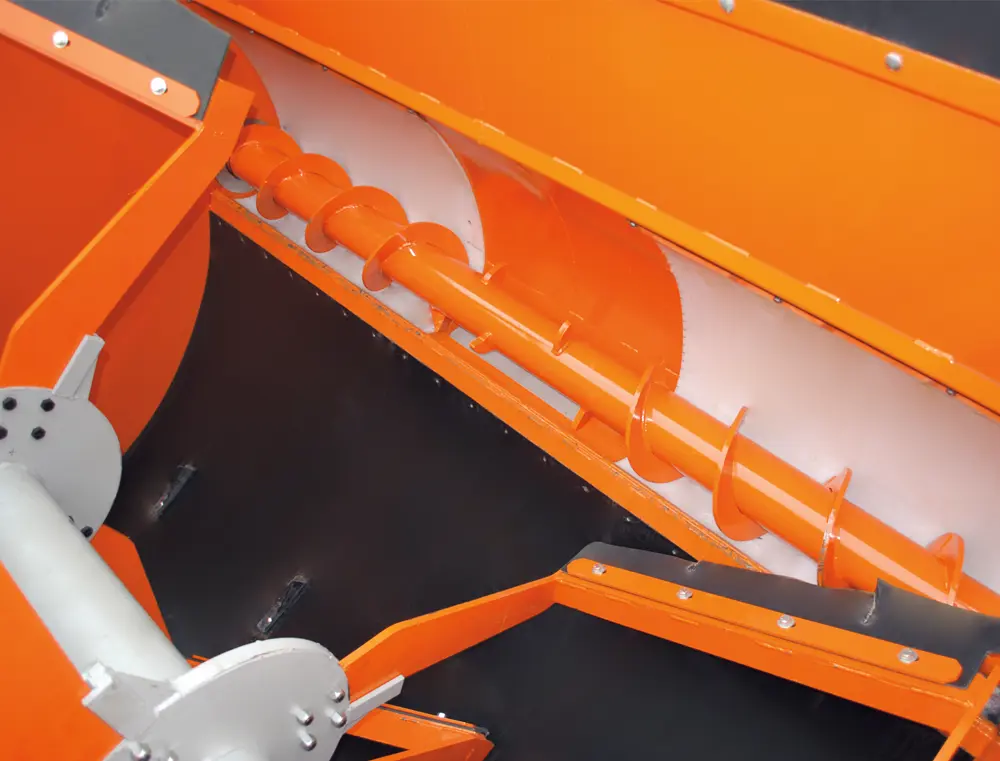

Unloading

Unloading

The clam-shell door swings open to allow feed in the recirculation auger to unload at a perfectly controlled delivery rate, ideal for automated systems.

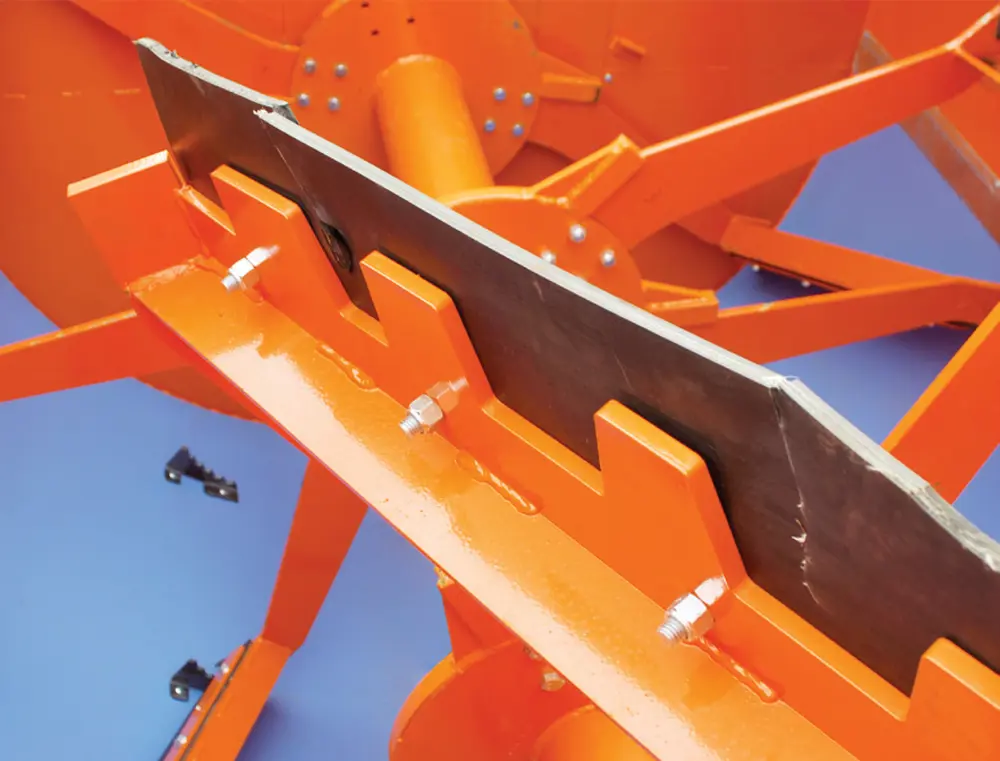

Complete clean-out

Complete clean-out

Rubber wiper blades ensure that minerals or other fine ingredients are perfectly integrated into the mix, and that the mixer is completely emptied at the end of the batch.

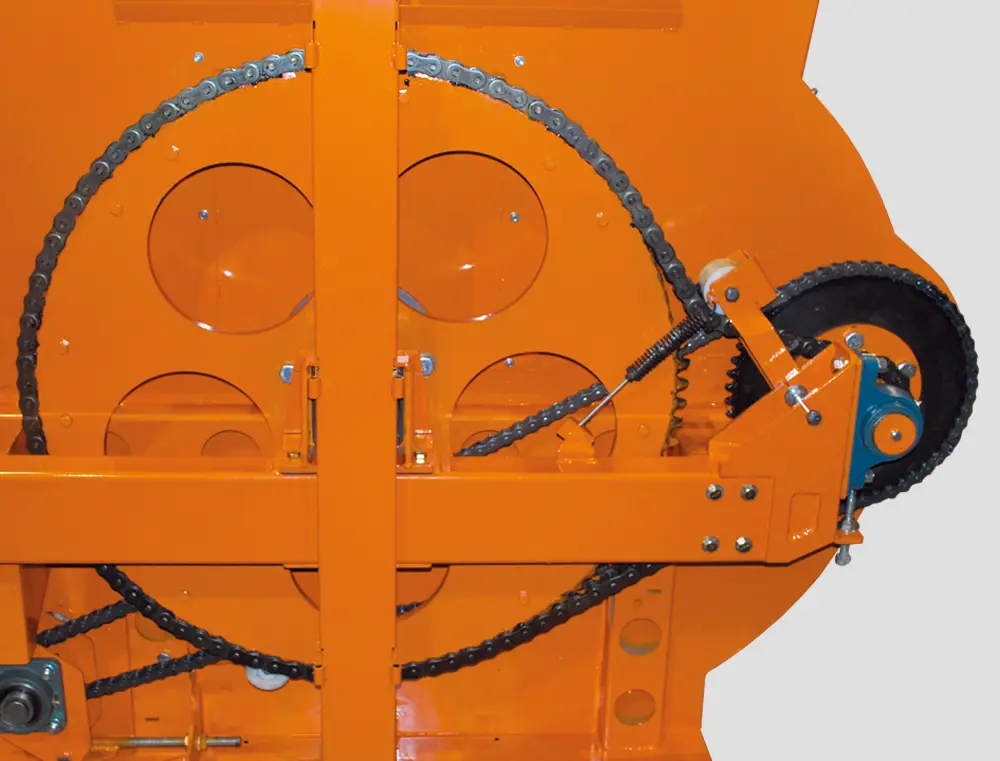

Low-maintenance drive system

Low-maintenance drive system

Designed for easy service, the simple drive system has few moving parts and requires a minimum amount of attention.

Specifications

Model Length Width Height Mixing capacity
6100 149’’ (3.8 m) 93’’ (2.4 m) 87’’ (2.2 m) 225 ft³ (6.4 m3)
6120 173’’ (4.4 m) 93’’ (2.4 m) 87’’ (2.2 m) 270 ft³ (7.6 m3)
8100 149’’ (3.8 m) 119’’ (3 m) 109’’ (2.8 m) 380 ft³ (10.8 m3)
