Benefits

  • Excellent maneuverability.
  • Maximum performance and minimum maintenance downtime.
  • Reliable mechanical steering, regardless of speed.
  • Powerful impeller with 21” (53 cm) hinged housing.
  • Great stopping power for heavier loads.
  • Independent suspension up to 16'' (41 cm) of travel.
  • Independent trailer and replaceable tank.
  • 1/4" (6 mm) steel - complete body tank
  • 1/4'' (6 mm) steel anti-surge baffles
  • Stainless steel tank Optional
  • Continuous welding eliminates rust seams
  • Hydraulic suspension
  • Mechanical steering linkage
  • PTO (540 or 1000 RPM) or hydraulic drive
  • 32'' (81 cm) square fill hatch
  • 6'' (15 cm) discharge pipe
  • LED signal light kit
  • DOT reflective strips (sides and back)
  • Roof with non-slip walkway
  • Safety chain
  • Fenders and mudguards
  • Level indicator (front and rear)
  • 1/4'' (6 mm) steel anti-surge baffles
  • 4-3/8’’ (11 cm) 20,000 lb (9,072 kg) hubs and shafts
  • Grease lines
  • Hydraulic or pneumatic brakes
  • Brakes with industrial 4-piston calipers
  • Industrial brakes on 4 or 6 wheels Optional
  • AR steel impeller Optional

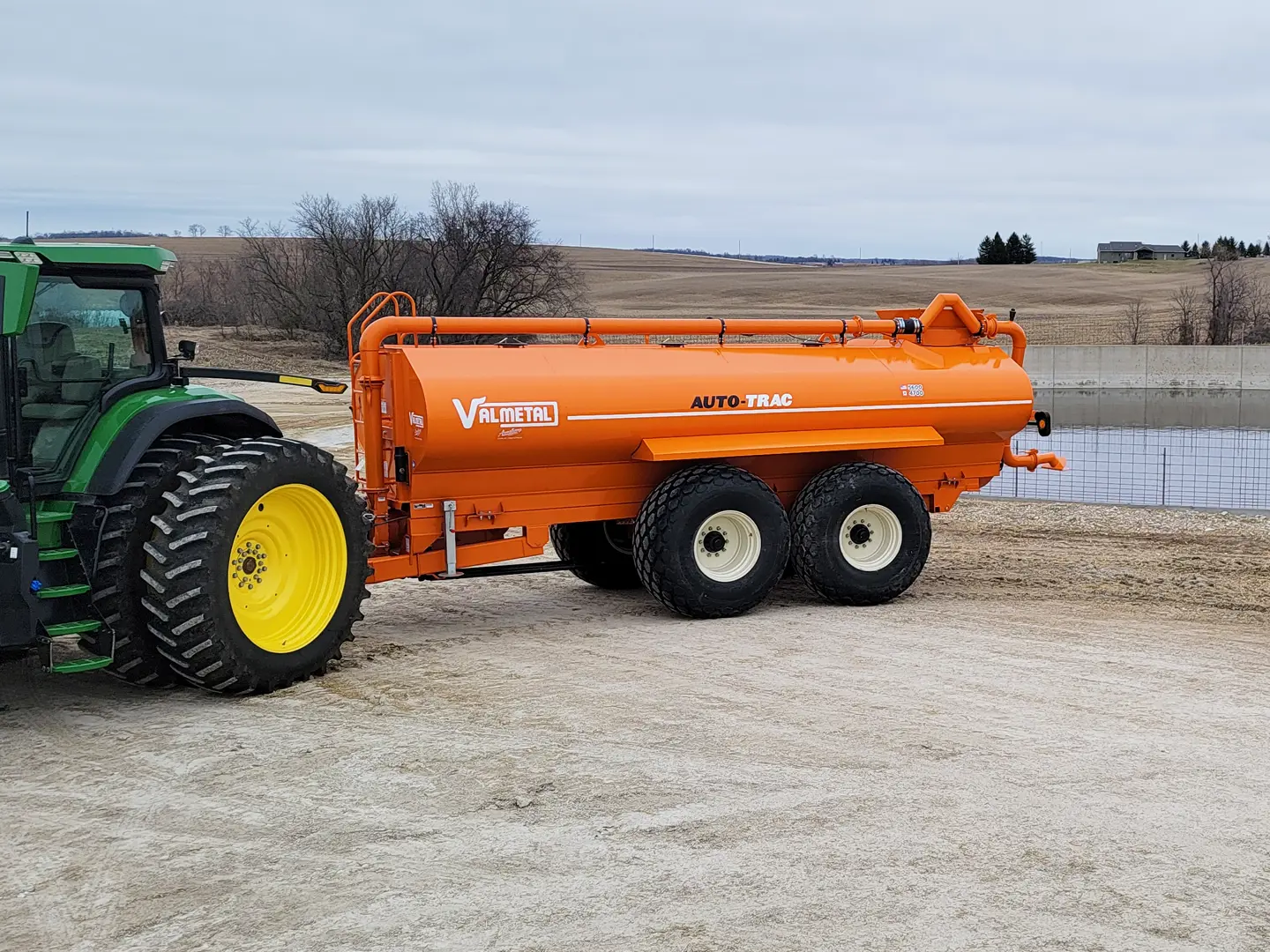

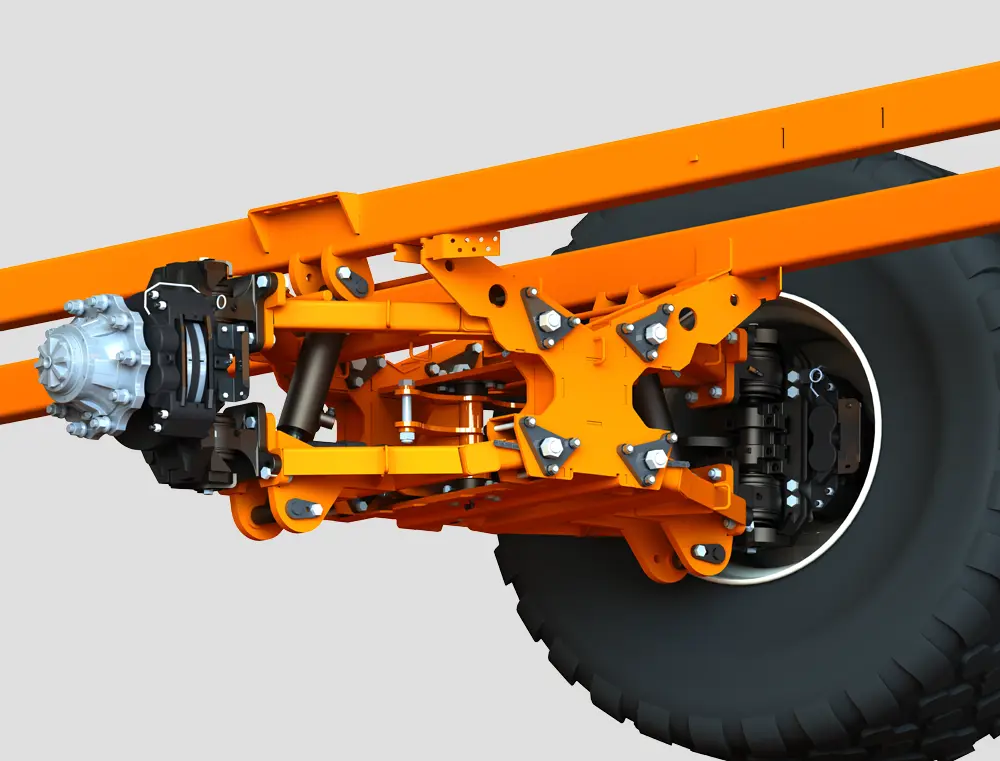

Stop getting pushed around. Auto-steering, all the time.

Stop getting pushed around. Auto-steering, all the time.

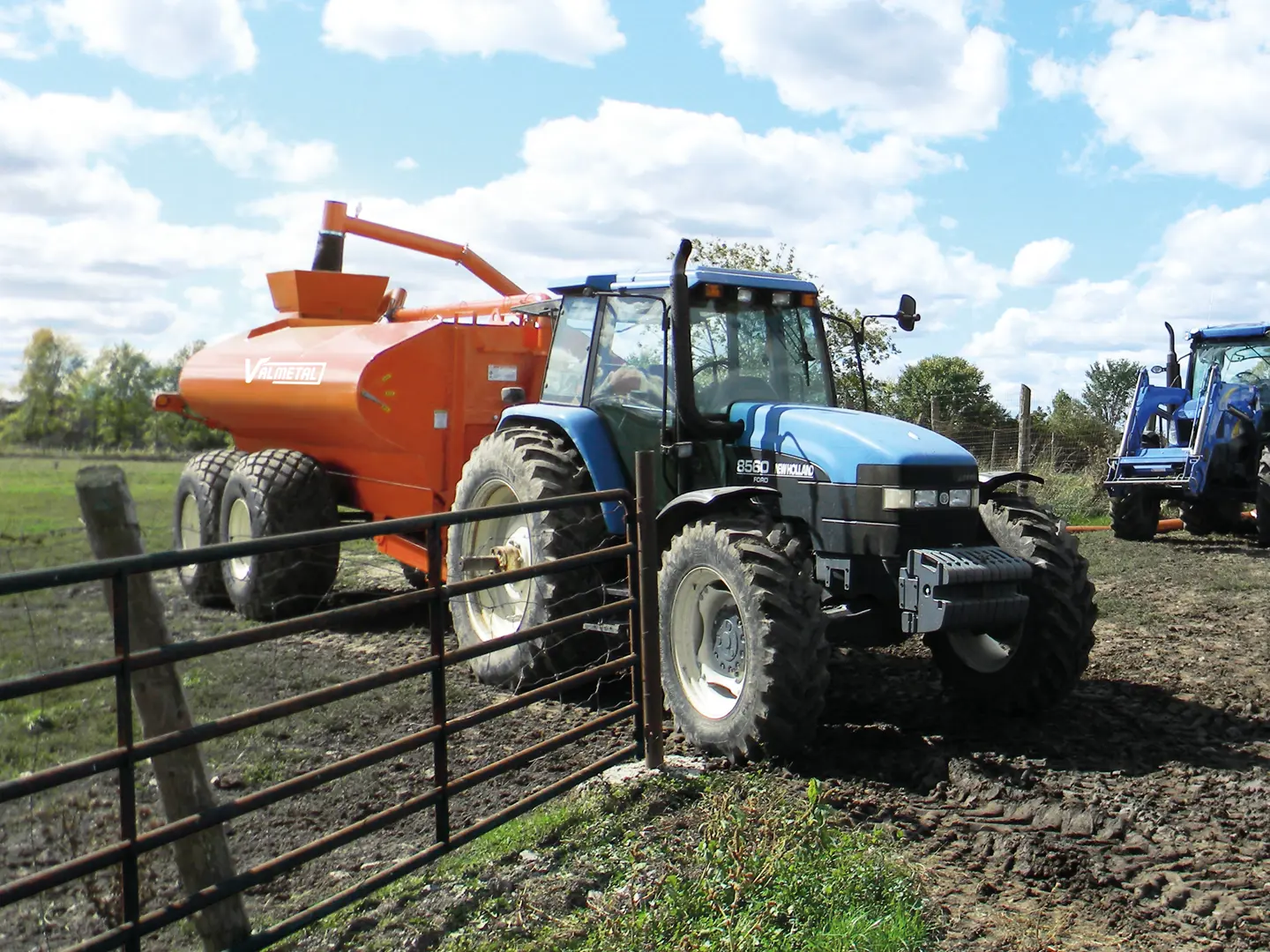

Non-steerable tankers tear up the headlands and roads while Maxx-Trac tankers roll smoothly through corners. Its fully automatic steering operates at any speed.

Choose your profile

Choose your profile

The Maxx-Trac's narrow profile keeps you out of the oncoming lane and provides better visibility for following vehicles. Choose from a low or standard profile, depending on your needs.

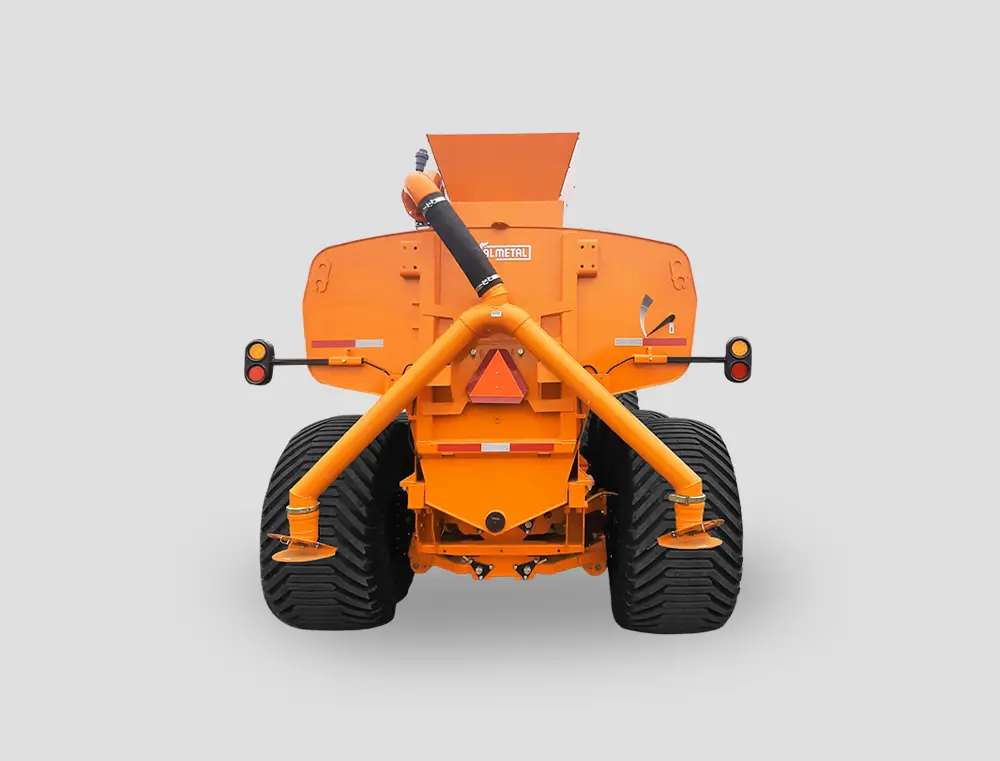

Discharge choices

Discharge choices

  • High jet
  • Low jet
  • High and low jet set
  • Dual jet set (left/right)
  • Spreading jets 3-3/4'', 5'' or 6'' (95, 127, or 152 mm)

Features

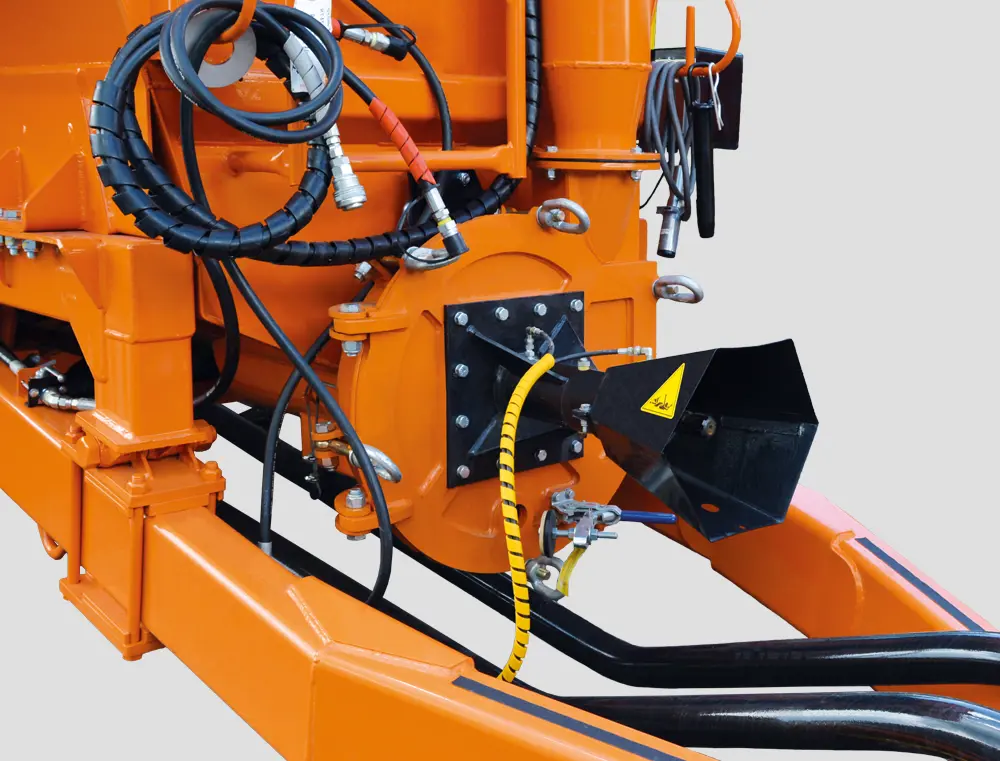

High volume impeller

High volume impeller

The Maxx-Trac spreader is equipped with a high-end impeller for the fastest unloading. Its oil-bath bearing chamber offers maximum reliability. Discharge system available in 6’’ or 8’’ (15 or 20 cm).

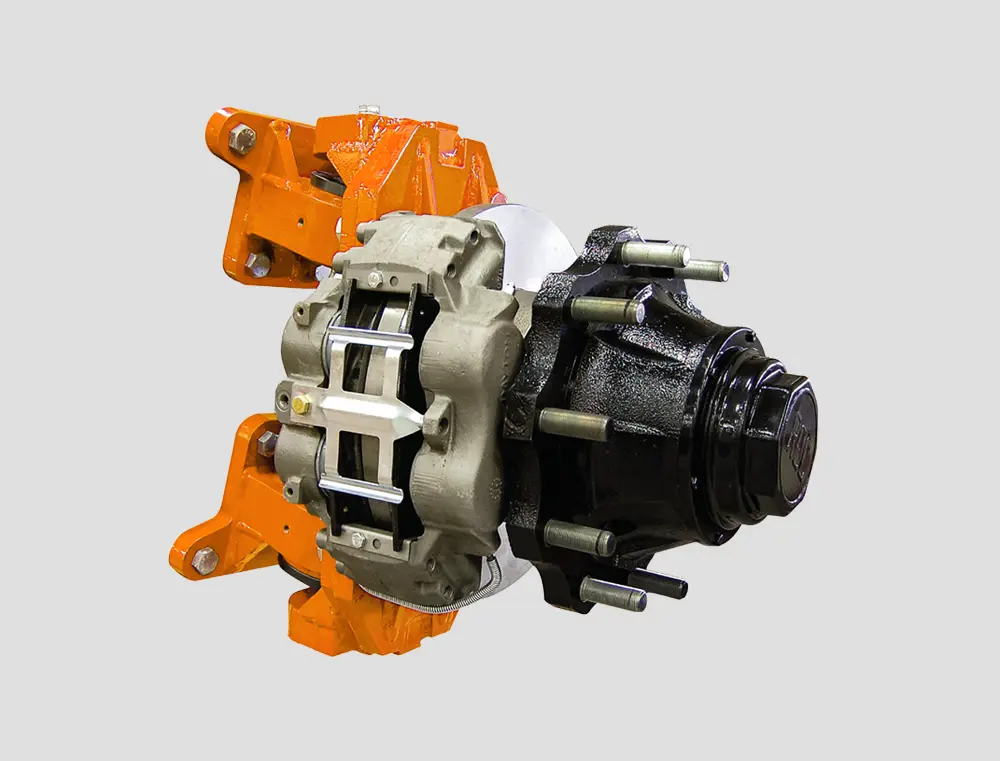

Great stopping power

Great stopping power

Massive brake calipers feature larger pads than the industry standard. The 100% hydraulic oil in the braking system thus eliminates the risk of contamination of the tractor hydraulic system. Automatic braking makes driving safer by reducing operating errors.

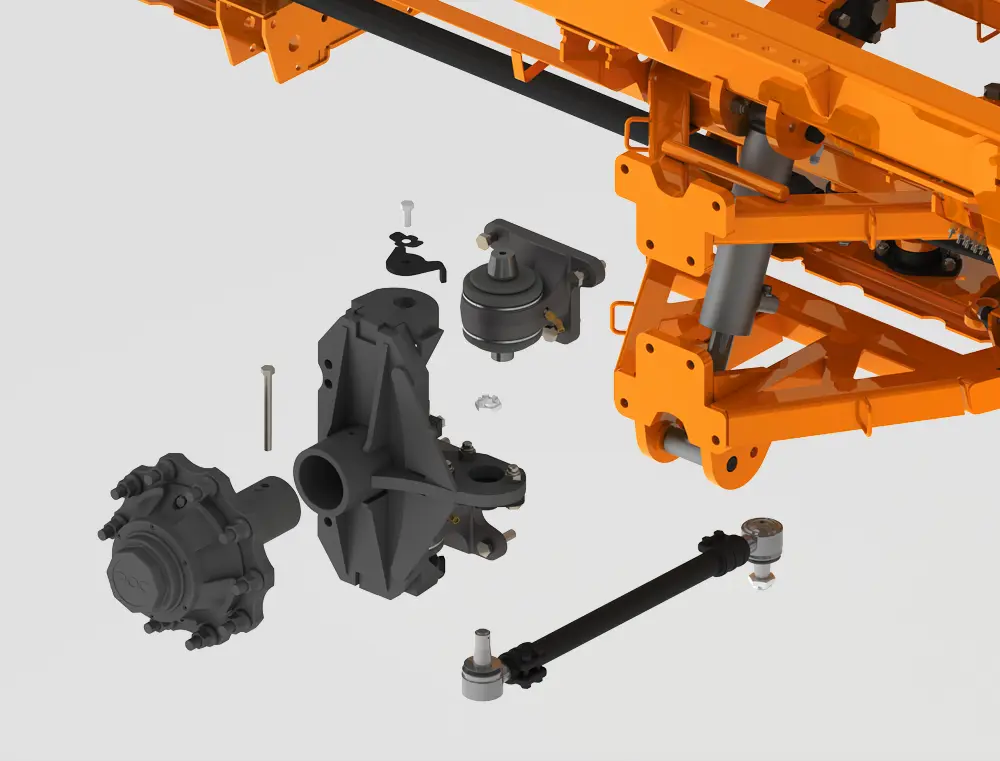

Modular construction

Modular construction

Regular maintenance protects your investment. Each module is removable using standard on-farm tools. The suspension tables and the pivoting axle assembly have the advantage of being identical on each wheel.

Durability guaranteed

Durability guaranteed

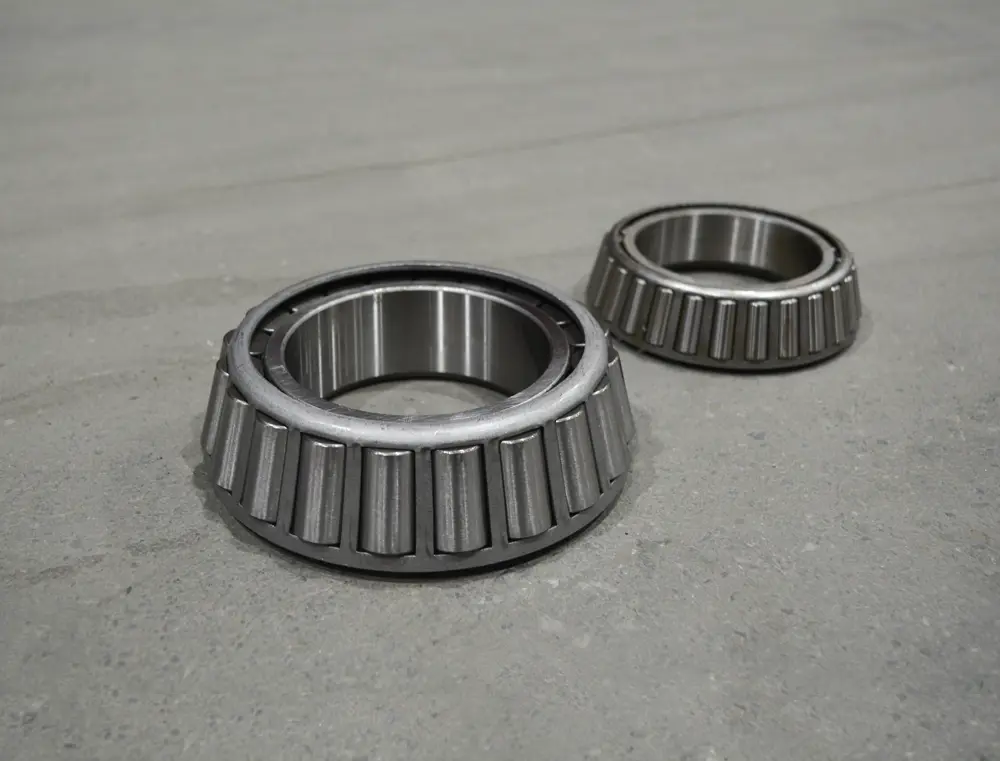

Built for heavy sand loads! Unique to Valmetal, the outer wheel bearings are the same size as the inner bearings. High-strength steel axles are designed specifically for use with extra-wide flotation tires.

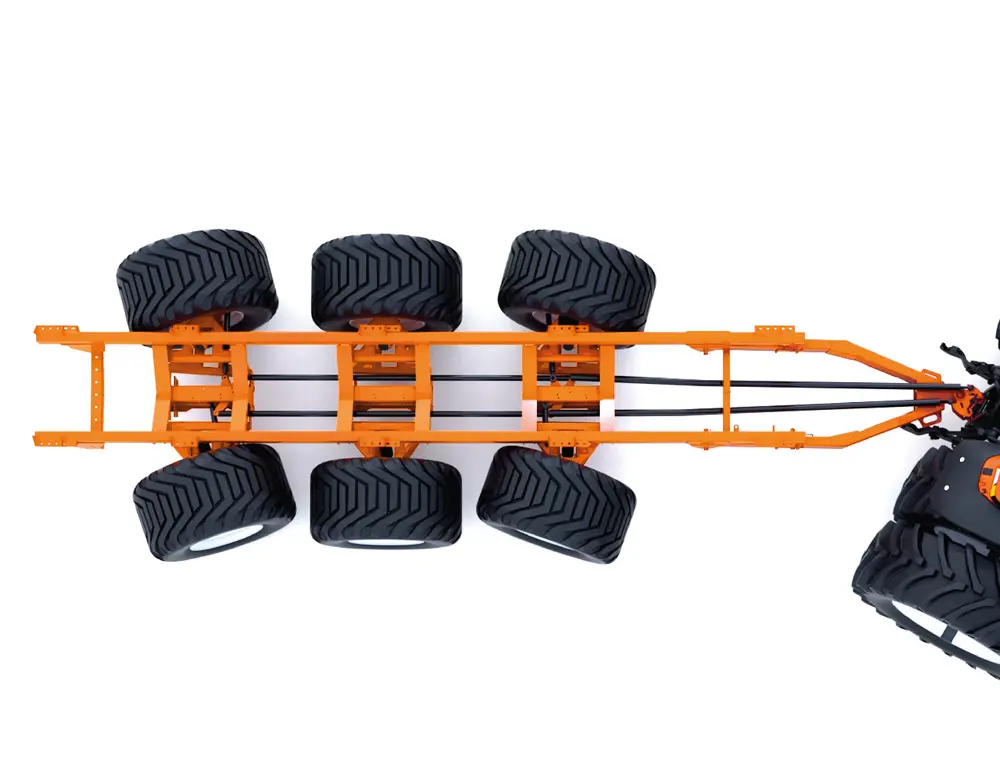

Are you steering or smearing?

Are you steering or smearing?

The Maxx-Trac's sturdy full-length trailer makes it easy to navigate uneven ground and defy the tightest turns. Its hydraulic suspension cushions shocks while its precise steering system minimizes stress on your tractor when turning, reduces tire wear and reduces stress on axles, hubs, and rims.

Specifications

4-wheel models

Model Tank
length
Overall length Profile US
gallons
Imperial gallons Liters Empty weight* Approximate loaded weight
4000 16’
(5 m)
23’
(7 m)
low 4,000 3,300 15,100 14,000 lb
(6,350 kg)
47,000 lb
(21,319 kg)
4500 16’
(5 m)
23’
(7 m)
standard 4,500 3,800 17,200 14,250 lb
(6,464 kg)
52,250 lb
(23,700 kg)
5000 20’
(6 m)
27’
(8.2 m)
low 5,000 4,200 18,900 15,270 lb
(6,926 kg)
57,270 lb
(25,977 kg)
5700 20’
(6 m)
27’
(8.2 m)
standard 5,700 4,800 21,500 15,550 lb
(7,053 kg)
63,350 lb
(28,735 kg)

6-wheel models

Model Tank
length
Overall length Profile US
gallons
Imperial gallons Liters Empty weight* Approximate loaded weight
5600 22’
(6.7 m)
29’
(9 m)
low 5,600 4,600 21,200 19,330 lb
(8,768 kg)
65,330 lb
(28,726 kg)
6200 22’
(6.7 m)
29’
(9 m)
standard 6,200 5,200 23,600 19 650 lb
(8,913 kg)
71,650 lb
(32,500 kg)
6600 26’
(8 m)
33’
(10 m)
low 6,600 5,500 25,000 20 890 lb
(9,476 kg)
75,900 lb
(34,428 kg)
7400 26’
(8 m)
33’
(10 m)
standard 7,400 6,200 28,000 21 130 lb
(9,584 kg)
82,700 lb
(37,512 kg)

8-wheel models

Model Tank
length
Overall length Profile US
gallons
Imperial gallons Liters Empty weight* Approximate loaded weight
8500 34’
(10.4 m)
41’
(12.5 m)
low

8,500

7,100 32,200 27,250 lb
(12,360 kg)
88,250 lb
(40,030 kg)
9600 34’
(10.4 m)
41’
(12.5 m)
standard 9,600 8,000 36,300 27,720 lb
(12,574 kg)
107,550 lb
(48,784 kg)
10 200 36’
(11 m)
43’
(13 m)
standard 10,200 8,500 38,600 28,580 lb
(12,964 kg)
113,100 lb
(51,301 kg)

*Equipped with 850/50x30.5 tires, other tires may weigh less.

Options and accessories

Trailer
Oil filled hub Injector lift kit
Automatic greasing system Working light kit
Hitch ball Night travel kit
Weight transfer Stainless steel fenders
Tank
3-3/4”, 5” or 6” (95, 127, or 152 mm) spreader jet  Internal agitator kit  Rock trap
Ready for flowmeter kit Self-charging kit  Rear hitch
Roof-top fill flag  High or low profile hopper  Transfer arm
8'' (20 cm) discharge pipe  Sand auger Anti-siphon pipe
Parallel ramps and heavy injectors support Rear bumper  Hydraulic or pneumatic hopper door
Low-spray or double-spray discharge Hydraulic guillotine for flow control  Spring-loaded hopper door
