Benefits

  • The unloading auger is located at the rear end of the cart, closer to the driver for easier visual access.
  • The floor goes up at an angle to the discharge auger for better retention of the material.
  • Bedding can either be dropped next to the cart or be spread up to a distance of 8’ (2.4 m).
  • Ensures a regular and controlled flow of material.
  • 13 HP Honda motor with electric starter
  • High performance hydrostatic pump
  • Direct drive traction by 2 hydraulic motors
  • Hydraulic oil filtration system
  • Centrifugal clutch allowing free starting of the motor
  • Auger trough lined with UHMW polymer
  • Flat-free steering wheels
  • Flat-free traction tires Optional
  • Tractor type tires Optional
  • Tractor type tires with urethane filling Optional
Make filling easier

Make filling easier

Fill your cart automatically using a conveyor system.

Powerful impeller
Powerful impeller

Powerful impeller

The bedding can be dropped directly onto the ground next to the cart or using the powerful 18'' (46 cm) diameter impeller, capable of projecting up to a distance of 8' (2.4 m). An action that remains safe for animals.

The impeller is powered by a hydraulic motor mounted on a hand-lever which allows it to be positioned manually under the cart if necessary.

Features

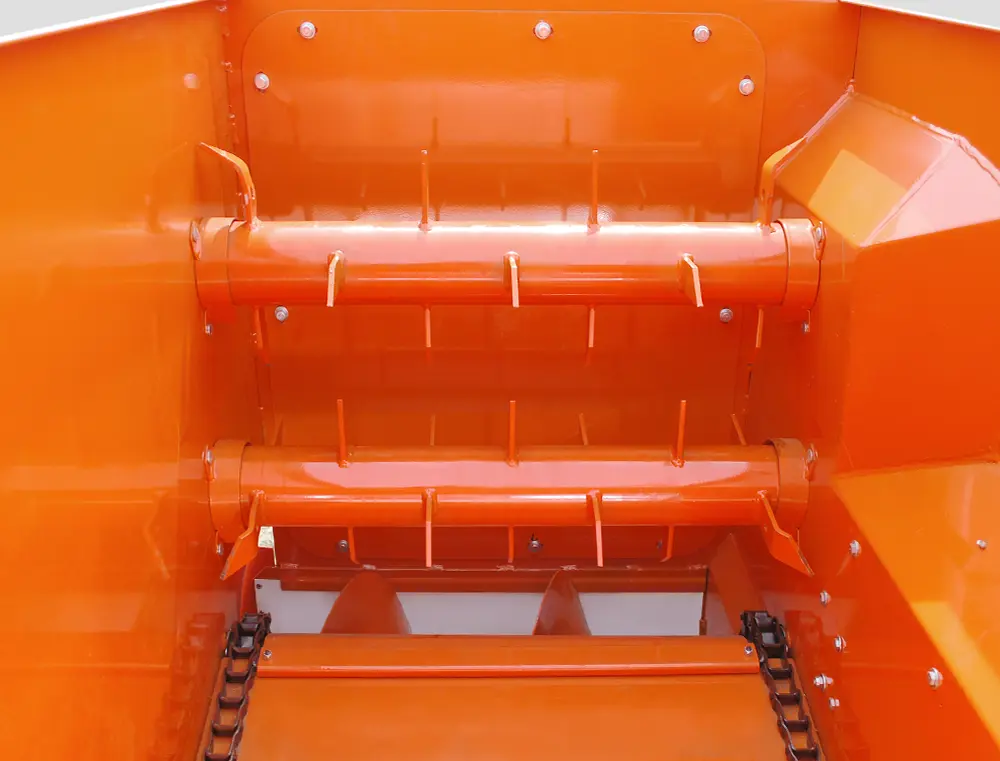

TMR beaters

TMR beaters

Two heavy-duty TMR-type beaters regulate the quantity of material going to the discharge auger.

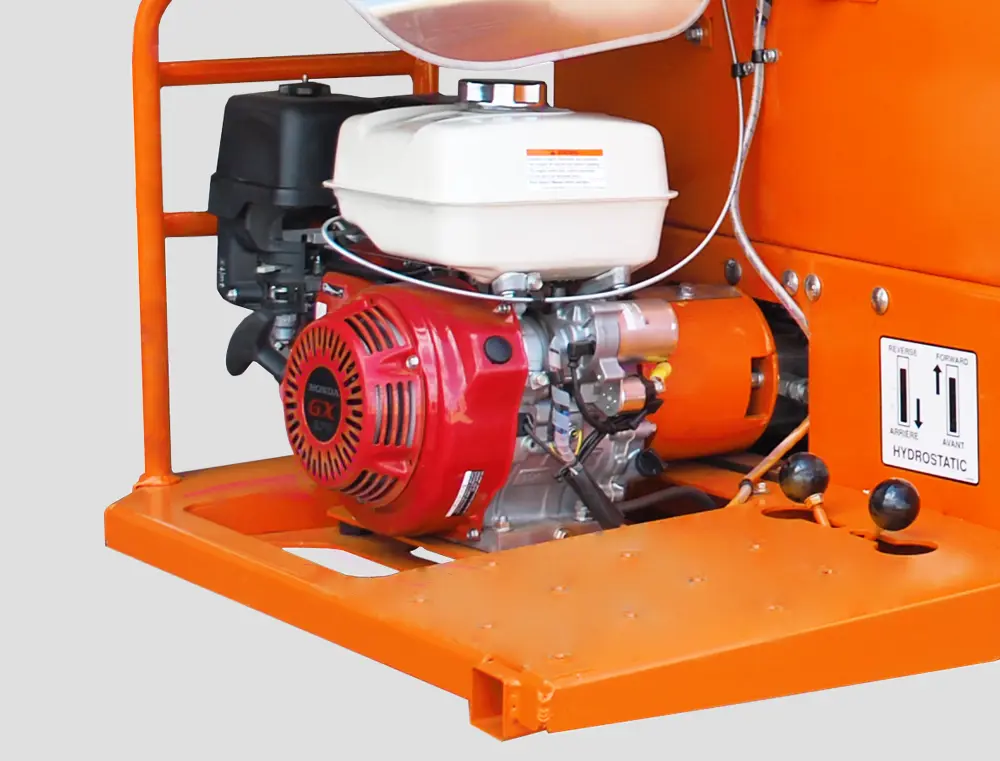

Motor

Motor

The engine is mounted on the step, surrounded by a guard to protect it and also protect the operator against burns. The heat from the engine can dissipate more quickly and filling up the tank is also easier.

Drive

Drive

The hydrostatic transmission and the hydraulic pump are directly driven by the Honda engine, no belt. Provides less maintenance, more power.

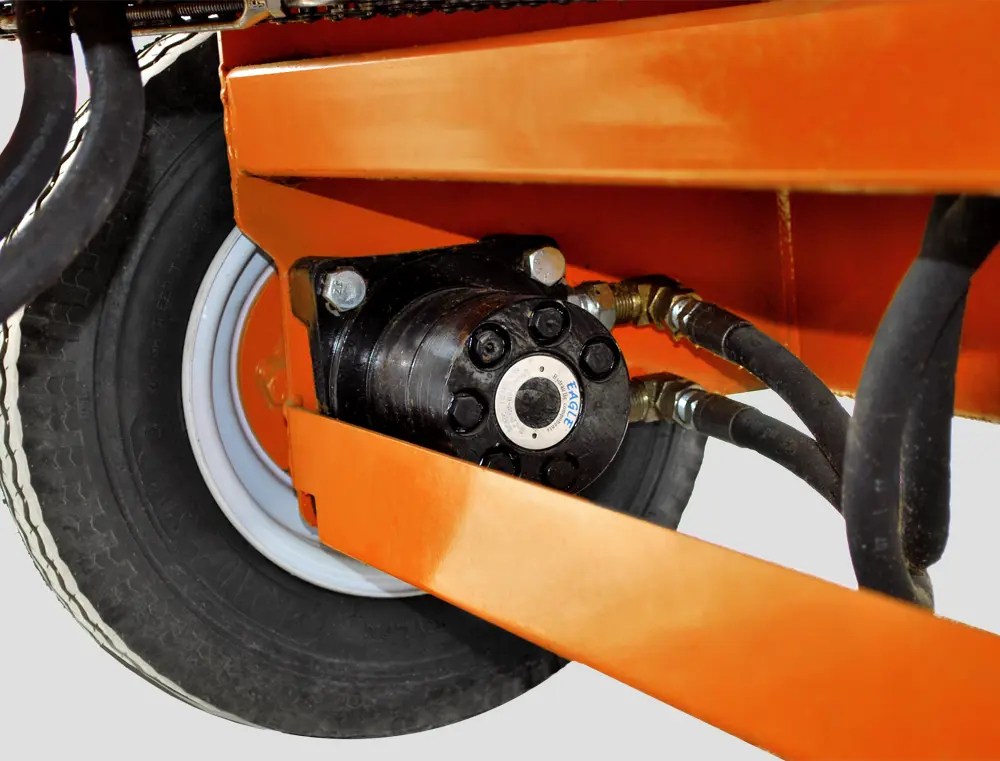

Drive wheels mounted on wheel motors

Drive wheels mounted on wheel motors

No axle! The drive wheels are mounted on wheel motors for less maintenance and more power.

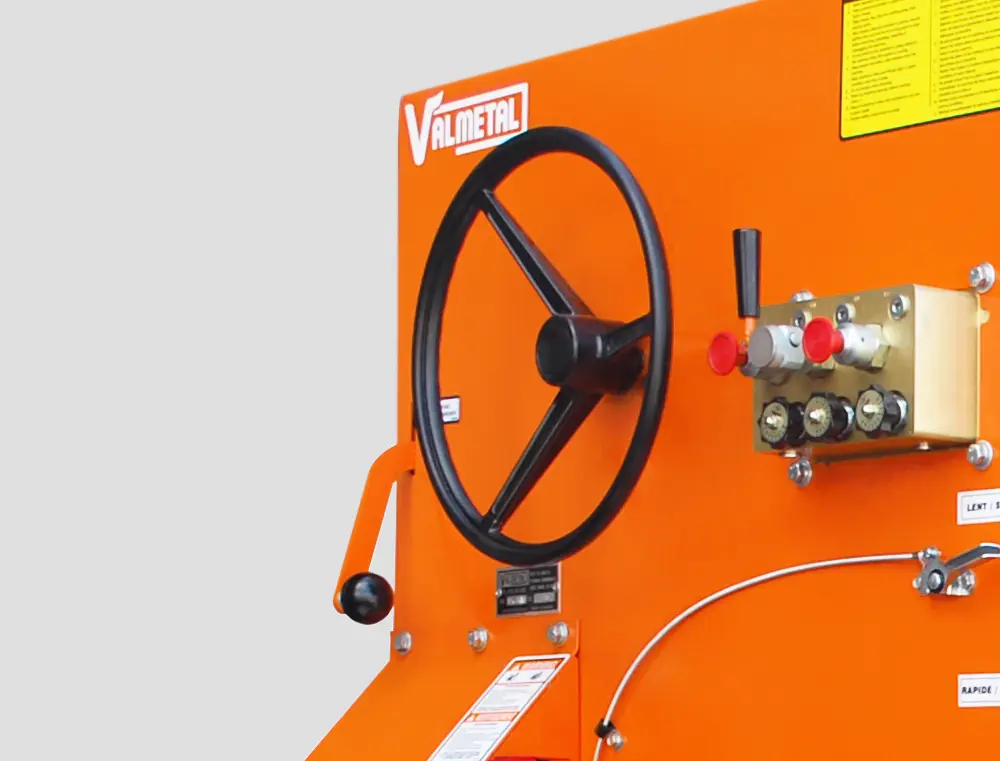

Control valve

Control valve

The hydraulic pump provides power to a control valve to operate independently the conveyor, beaters and propeller.

Specifications

Model Length Width Width
(retracted propeller)
Height Capacity
940 90’’ (228 cm) 62’’ (156 cm) 40’’ (100 cm) 66’’ (168 cm) 40 ft3 (1.1 m3)
960 107'' (272 cm) 68’’ (173 cm) 46’’ (117 cm) 66’’ (168 cm) 60 ft3 (1.7 m3)
970 119’’ (302 cm) 68’’ (173 cm) 46’’ (117 cm) 66’’ (168 cm) 70 ft3 (2 m3)
