Benefits

  • Versatile and suitable for all feed types.
  • Simple and solid construction with a large loading capacity.
  • Sustainable materials for minimum maintenance costs.
  • Low energy consumption.
  • Wall panels and floor are made of heavy gauge stainless steel to resist abrasion and corrosion
  • Independent apron drive for better control of unloading
  • Heavy-duty logging chains rated at 11,300 lb (5140 kg)
  • Paddles and chains move on UHMW slides to reduce friction
  • Motor requirement: 5 HP (4 kW) / beater and 3 HP (2 kW)/ conveyor
A great asset in  your automated  feeding system!

A great asset in your automated feeding system!

Be precise and efficient in your feed preparation by adding one or more silage reserves into your automated feeding system.

An automated control panel comes with each Combox. This panel is in charge of stopping the conveyor when the motor of the 3 beaters works beyond the required capacity, in order to avoid mechanical breakage.

Features

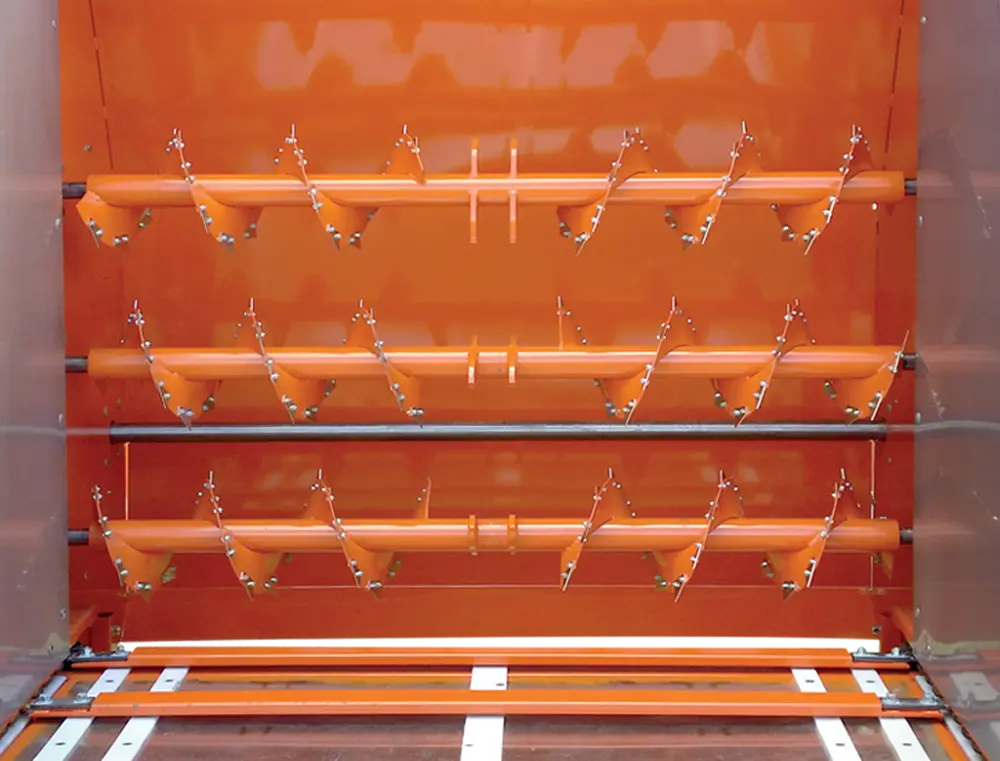

3 beaters

3 beaters

Beaters These heavy duty beaters are driven independently with a 5 hp (3.8 kW) motor. Sharp hardened knives can chop through the toughest material, like frozen silage.

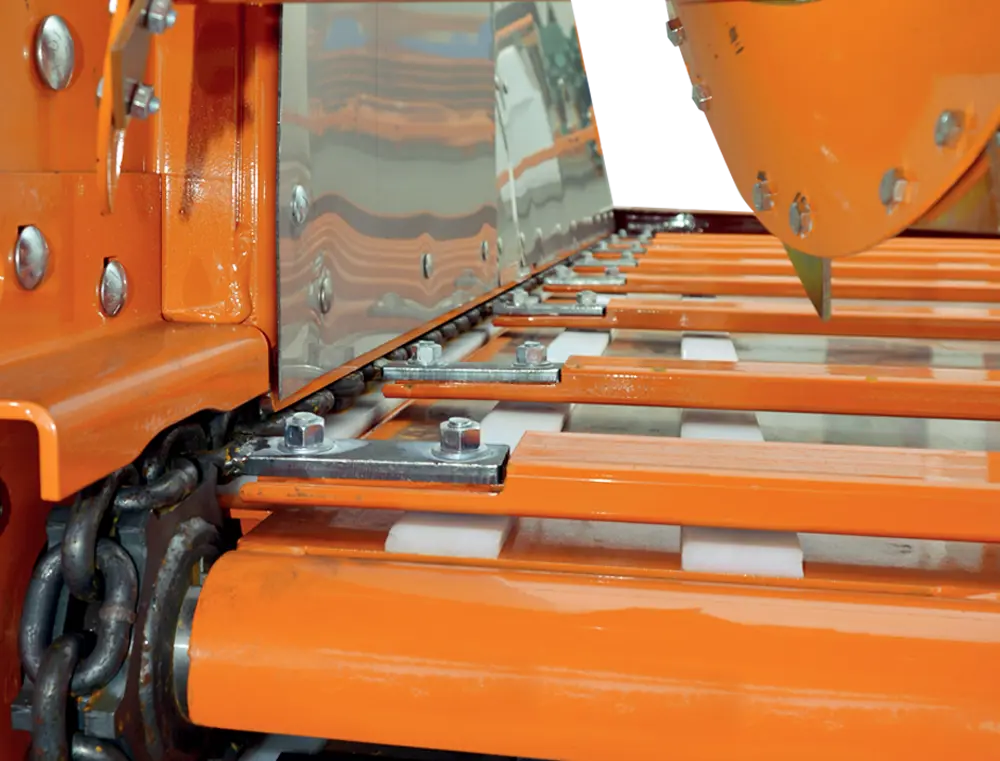

Logging chains

Logging chains

Heavy duty logging chains ride on UHMW slides and are covered to prevent material from getting in contact with the chains.

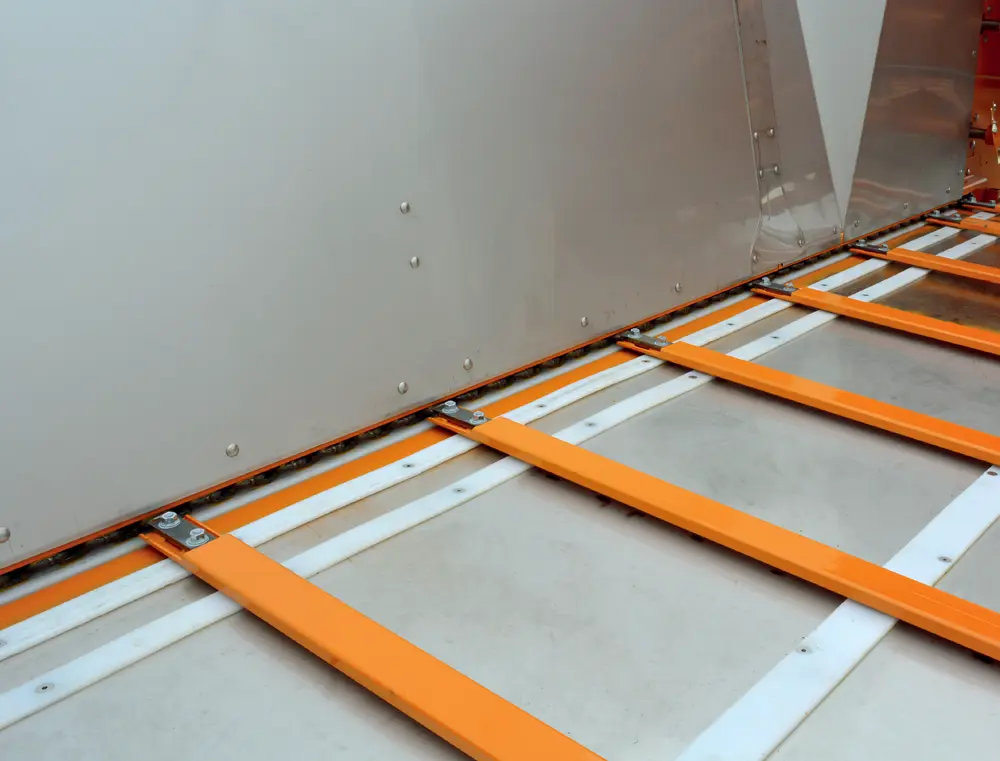

Flow regulation

Flow regulation

Apron speed is controlled by a variable frequency drive (VFD) which regulates the unloading flow, ensuring precise quantity delivery.

Specifications

Length Rear loading height Width at the top

Width at the bottom

Total height (without legs)

Total height (with legs)

Unloading height (with legs)

164'' (415 cm) 60'' (152 cm) 109'' (275 cm) 76'' (193 cm) 92'' (233 cm) 127'' (321 cm) 36'' (91 cm)
210'' (533 cm) 60'' (152 cm) 109'' (275 cm) 76'' (193 cm) 92'' (233 cm) 127'' (321 cm) 36'' (91 cm)
260'' (658 cm) 60'' (152 cm) 109'' (275 cm) 76'' (193 cm) 92'' (233 cm) 127'' (321 cm) 36'' (91 cm)
306'' (777 cm) 60'' (152 cm) 109'' (275 cm) 176'' (193 cm) 92'' (233 cm) 127'' (321 cm) 36'' (91 cm)
