Benefits

  • Heavy duty frame and scale mounts.
  • High precision rolled walls for smoothest finish and easiest mixing.
  • Extra-large auger delivers fast and complete mixing.
  • Ideal choice for large round or square bales.
  • Simple planetary drive system.
  • Low maintenance.

Benefits

  • Heavy duty frame and scale mounts.
  • High precision rolled walls for smoothest finish and easiest mixing.
  • Extra-large auger delivers fast and complete mixing.
  • Ideal choice for large round or square bales.
  • Simple planetary drive system.
  • Low maintenance.
  • Tub floor made of stell 44W - 3/4'' (19 mm)
  • Fully welded tub made of abrasion resistant steel AR-235 - 1/4'' (6 mm)
  • Auger flighting made of steel 44W - 3/4'' (19 mm)
  • Heavy duty planetary gearbox
  • Drive system with 2-speed gearbox
  • Choice of unloading door position (left or right)
  • Electric door opening kit Optional
  • Oil cooling system Optional
  • Flow equalizer Optional
  • Retention chain Optional
  • Tub floor made of stell 44W - 3/4'' (19 mm)
  • Fully welded tub made of abrasion resistant steel AR-235 - 1/4'' (6 mm)
  • Auger flighting made of steel 44W - 3/4'' (19 mm)
  • Heavy duty planetary gearbox
  • Drive system with 2-speed gearbox
  • Choice of unloading door position (left, right or front)
  • Hydraulic door opening kit
  • Oil cooling system Optional
  • Retention chain Optional
For maximum durability

For maximum durability

Strengthen your Valmetal Vertical Mixer with our optional liners:

  • Stainless steel tub inner wall liner 1/8'' (3 mm) X 40'' (102 cm).
  • Hardox HiAce steel bottom liner 1/4'' (6 mm).
  • Stainless steel liner of 3/16'' (5 mm) on 4'' (10 cm) auger.
  • Stainless steel liner of the 1/4'' (6 mm) at the bottom screw.
V-Mix series

V-Mix series

The 400 and 575 are the most popular models of the V-Mix series. The unique shape or their tub features a flat side that greatly speeds bale shredding which offers an appreciable time and energy saving day after day.

High capacity models

High capacity models

The V-Mix 700, V-Max 630 and the Fatmix series are equipped with twin screws, specially designed to deliver maximum performance and efficiency.


The stationary mixers of the V-Mix series are equipped with a two-speed drive system.

For maximum durability

For maximum durability

Strengthen your Valmetal vertical mixer with our optional liners:

  • Stainless steel tub inner wall liner 1/8'' (3 mm) X 40'' (102 cm).
  • Hardox HiAce steel bottom liner 1/4'' (6 mm).
  • Stainless steel liner of 3/16'' (5 mm) on 4'' (10 cm) auger.
  • Stainless steel liner of the 1/4'' (6 mm) at the bottom screw.
Choice of unloading conveyors

Choice of unloading conveyors

Gain reach by adding an unloading conveyor to your vertical mixer. Multiple unloading, length and control options are available.

  • Lateral conveyor with hydraulic motor
  • Front conveyor with left, right or both sides discharge
  • Front conveyor with tilting hydraulic or manual adjustment section
Choice of wheels
Choice of wheels

Choice of wheels

Truck style tires are designed for driving on the road or on drier surfaces while flotation style tires are preferable for driving on muddy, soft or even uneven surfaces.

Choose from the following configurations:

  • Tandem single wheel system with flotation style tires
  • Tandem double wheel system with truck style tires
  • Single wheel system with flotation style tires
  • Single wheel system with truck style double tires

Features

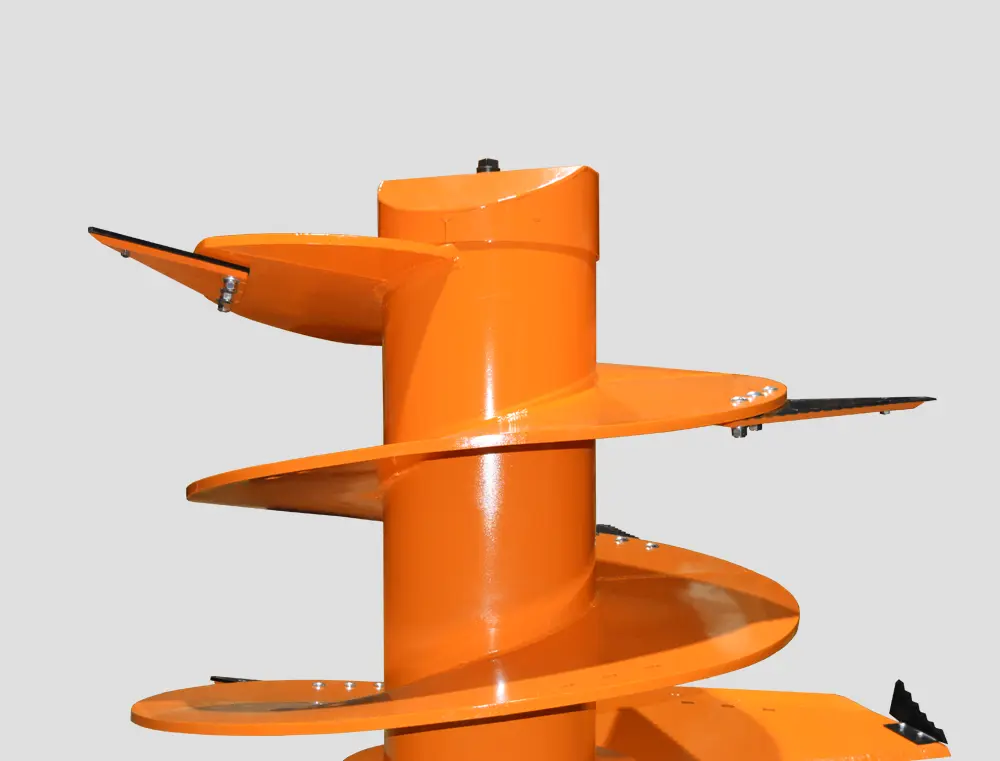

Knifes

Knifes

Each auger is fitted with 4 extra-large tungsten carbide knives for fast bale processing. Knives are Rockwell 52 hardness for long life.

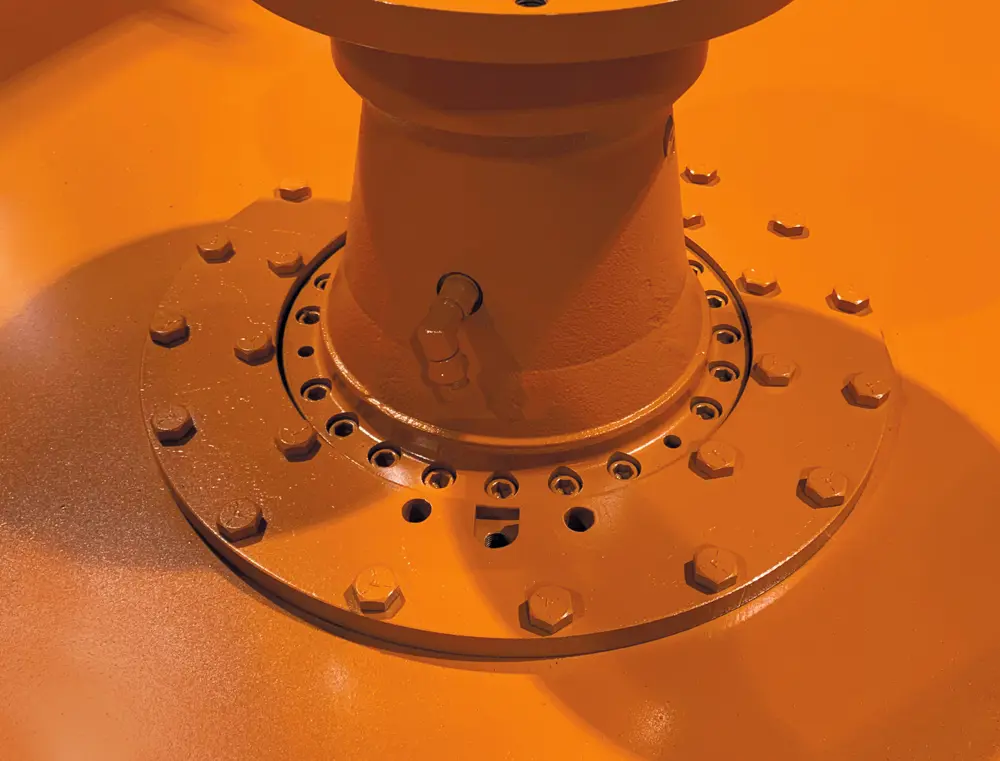

Reinforcement disc

Reinforcement disc

The planetary gearbox mounting area is reinforced to 3/4” (19 mm) thick to distribute loads and provide excellent stability.

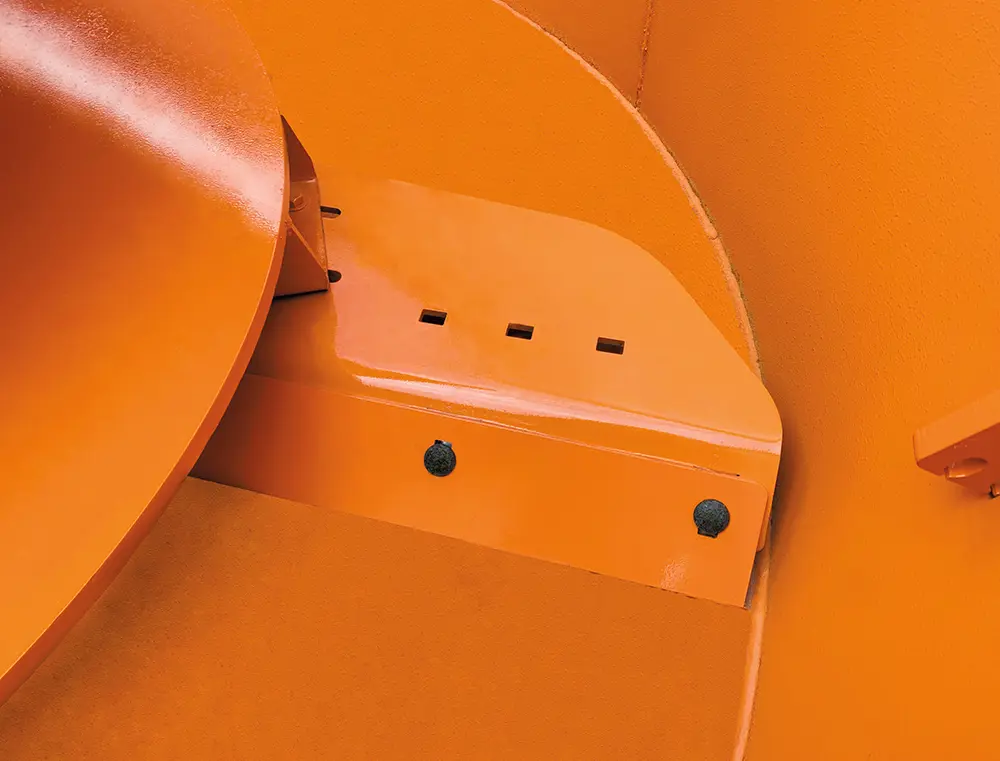

Extra kicker arm (option)

Extra kicker arm (option)

The addition of a second, replaceable kicker arm provides more even unloading. Recommended when unloading to conveyors.

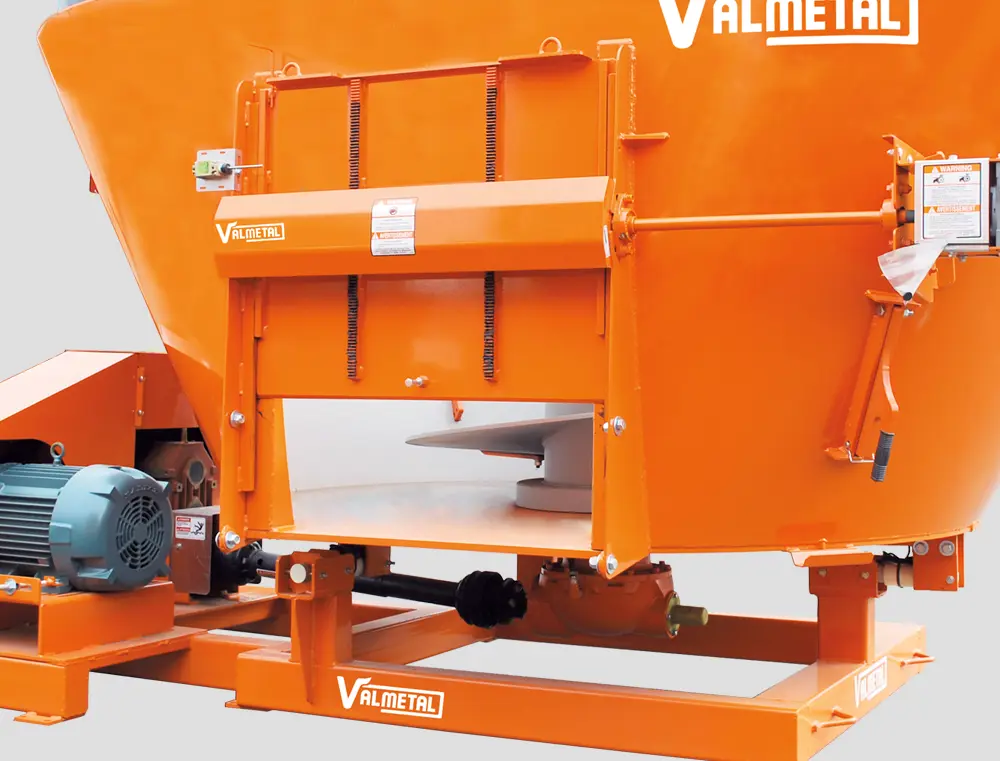

Electric door opener (option)

Electric door opener (option)

The powerful rack and pinion mechanism smoothly operates the slide door. The gearbox on the optional power unit is run by a 1 HP C-face motor.

Door release knife (option)

Door release knife (option)

This knife helps the free flow of material by clearing the door opening and prevents accumulations. It also improves the movement of ingredients at the bottom of the mixer to speed up mixing.

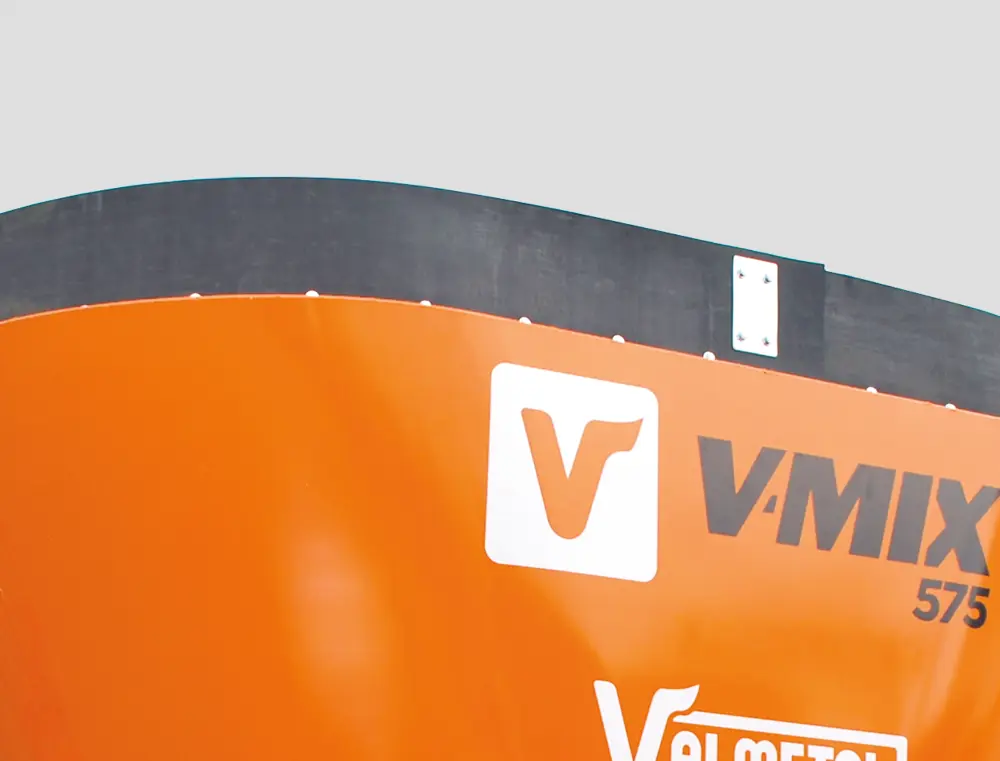

Extension kits (option)

Extension kits (option)

The 12” (30 cm) extension prevents overflow while loading the mixer. The flexible rubber extension is recommended for tractor loading, the steel extension may be used for conveyor-loading.

Features

Knifes

Knifes

Each auger is fitted with 4 extra-large tungsten carbide knives for fast bale processing. Knives are Rockwell 52 hardness for long life.

Reinforcement disc

Reinforcement disc

The planetary gearbox mounting area is reinforced to 3/4” (19 mm) thick to distribute loads and provide excellent stability.

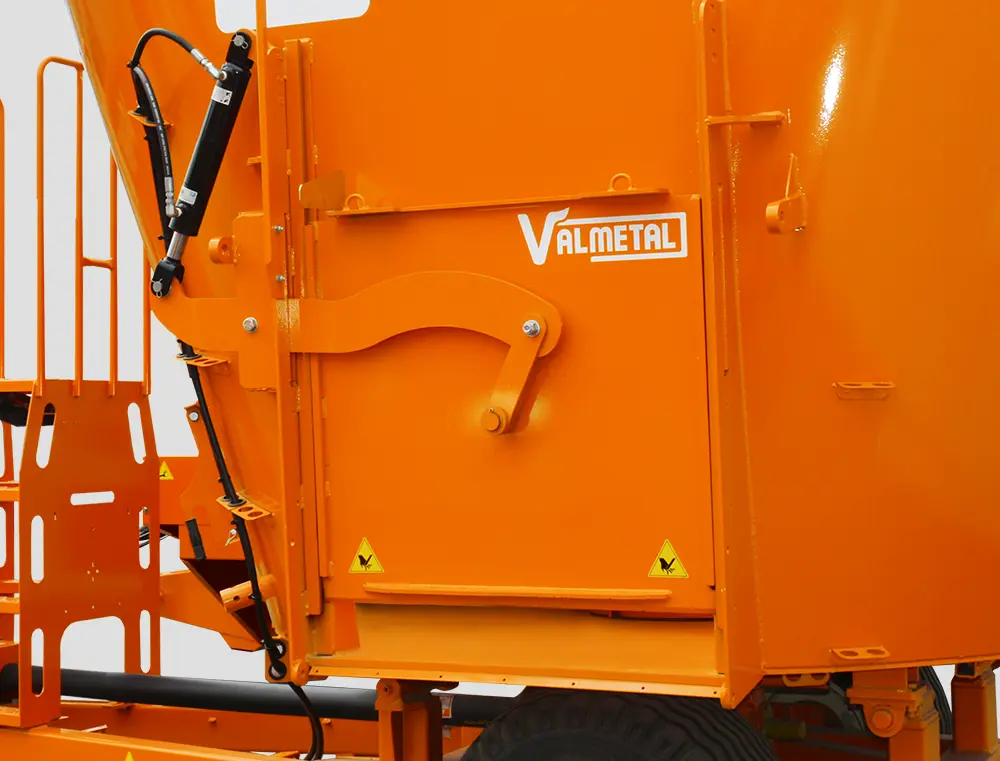

Hydraulic door opener

Hydraulic door opener

Heavy duty hydraulic door opening system with 2-speed transmission. Choose the optional automatic transmission to benefit from uninterrupted operation, reduced mixing time, energy savings and to reduce stress on the drive system. Wired or wireless remote control.

Extra kicker arm (option)

Extra kicker arm (option)

The addition of a second, replaceable kicker arm provides more even unloading. Recommended when unloading to conveyors.

Door clearing knife (option)

Door clearing knife (option)

This knife helps the free flow of material by clearing the door opening and prevents accumulations. It also improves the movement of ingredients at the bottom of the mixer to speed up mixing.

Extension kits (option)

Extension kits (option)

The 12” (30 cm) extension prevents overflow while loading the mixer. The flexible rubber extension is recommended for tractor loading, the steel extension may be used for conveyor-loading.

Specifications

Unit of measure

V-Mix

Mixing capacity (without extension)
219 ft3 6 m3
Mixing capacity (with extension)
259 ft3 7 m3
Length
140 in 356 cm
Width
111 in 282 cm
Height (without extension)
85 in 216 cm
Height (with extension)
95 in 241 cm
Weight
5,270 lb 2,390 kg
Mixing capacity (without extension)
315 ft3 9 m3
Mixing capacity (with extension)
374 ft3 11 m3
Length
148 in 376 cm
Width
117 in 297 cm
Height (without extension)
87 in 221 cm
Height (with extension)
97 in 246 cm
Weight
6,600 lb 2,993 kg
Mixing capacity (without extension)
481 ft3 14 m3
Mixing capacity (with extension)
551 ft3 16 m3
Length
156 in 396 cm
Width
123 in 312 cm
Height (without extension)
103 in 262 cm
Height (with extension)
113 in 287 cm
Weight
8,200 lb 3,719 kg
Mixing capacity (without extension)
706 ft3 20 m3
Mixing capacity (with extension)
809 ft3 23 m3
Length
248 in 630 cm
Width
120 in 305 cm
Height (without extension)
99 in 251 cm
Height (with extension)
109 in 277 cm
Weight
13,150 lb 5,964 kg

V-Max

Mixing capacity (without extension)
359 ft3 10 m3
Mixing capacity (with extension)
411 ft3 12 m3
Length
148 in 376 cm
Width
119 in 302 cm
Height (without extension)
95 in 241 cm
Height (with extension)
105 in 267 cm
Weight
9,200 lb 4,172 kg
Mixing capacity (without extension)
535 ft3 15 m3
Mixing capacity (with extension)
626 ft3 18 m3
Length
287 in 729 cm
Width
107 in 272 cm
Height (without extension)
99 in 251 cm
Height (with extension)
109 in 277 cm
Weight
13,300 lb 6,032 kg

Fatmix

Mixing capacity (without extension)
757 ft3 21 m3
Mixing capacity (with extension)
894 ft3 25 m3
Length
285 in 724 cm
Width
121 in 307 cm
Height (without extension)
88 in 224 cm
Height (with extension)
98 in 249 cm
Weight
16,200 lb 7,347 kg
Mixing capacity (without extension)
800 ft3 23 m3
Mixing capacity (with extension)
930 ft3 26 m3
Length
285 in 724 cm
Width
121 in 307 cm
Height (without extension)
88 in 224 cm
Height (with extension)
98 in 249 cm
Weight
16,540 lb 7,501 kg
Mixing capacity (without extension)
976 ft3 28 m3
Mixing capacity (with extension)
1,113 ft3 32 m3
Length
285 in 724 cm
Width
121 in 307 cm
Height (without extension)
102 in 259 cm
Height (with extension)
112 in 284 cm
Weight
17,170 lb 7,787 kg

Specifications

Unit of measure

V-Mix

Mixing capacity (without extension)
315 ft3 9 m3
Mixing capacity (with extension)
375 ft3 11 m3
Length
198 in 503 cm
Width
113 in 287 cm
Height (without extension)
102 in 259 cm
Height (with extension)
112 in 284 cm
Weight
6,750 lb 3,061 kg
Mixing capacity (without extension)
480 ft3 14 m3
Mixing capacity (with extension)
550 ft3 16 m3
Length
211 in 536 cm
Width
120 in 304 cm
Height (without extension)
118 in 300 cm
Height (with extension)
128 in 325 cm
Weight
7,800 lb 3,537 kg
Mixing capacity (without extension)
705 ft3 20 m3
Mixing capacity (with extension)
805 ft3 23 m3
Length
279 in 709 cm
Width
113 in 287 cm
Height (without extension)
117 in 297 cm
Height (with extension)
127 in 323 cm
Weight
14,225 lb 6,451 kg

V-Max

Mixing capacity (without extension)
360 ft3 10 m3
Mixing capacity (with extension)
410 ft3 12 m3
Length
204 in 518 cm
Width
107 in 272 cm
Height (without extension)
110 in 279 cm
Height (with extension)
120 in 305 cm
Weight
7,500 lb 3,401 kg
Mixing capacity (without extension)
535 ft3 15 m3
Mixing capacity (with extension)
625 ft3 18 m3
Length
287 in 729 cm
Width
107 in 272 cm
Height (without extension)
99 in 251 cm
Height (with extension)
109 in 277 cm
Weight
13,300 lb 6,032 kg

Fatmix

Mixing capacity (without extension)
385 ft3 11 m3
Mixing capacity (with extension)
460 ft3 13 m3
Length
215 in 546 cm
Width
119 in 302 cm
Height (without extension)
96 in 244 cm
Height (with extension)
106 in 269 cm
Weight
8,650 lb 3,923 kg
Mixing capacity (without extension)
755 ft3 21 m3
Mixing capacity (with extension)
895 ft3 25 m3
Length
326 in 828 cm
Width
119 in 302 cm
Height (without extension)
101 in 257 cm
Height (with extension)
111 in 282 cm
Weight
18,000 lb 8,163 kg
Mixing capacity (without extension)
975 ft3 28 m3
Mixing capacity (with extension)
1,115 ft3 32 m3
Length
326 in 828 cm
Width
119 in 302 cm
Height (without extension)
115 in 292 cm
Height (with extension)
125 in 318 cm
Weight
20,200 lb 9,161 kg
