Benefits
- Fast, quiet feed distribution.
- Adapts to all types of use thanks to its versatility and adjustable box height.
- Ecological, fume-free and energy-efficient.
- Ultra-abrasion-resistant polymer inner lining.
- Programmable travel and unloading speeds (by group) according to recipes.
- Made of stainless steel
- 2 x 0.5 hp motors: 1 for traction & 1 for the carriage
- 4 x 6-volt batteries
- 24VCD control with touch screen
- Battery charger & Charging docking station
- Speed from 0 to 45 ft/min (0 to 13,7 m/min)
- Detector of conveyor rotation of the DAF Optional
- Weighing system Optional
- Long fiber beaters Optional
- Remote control Optional
Encoder
The DAF is controlled by a powerful plc (programmable logic controller) and its localisation by a rotary encoder!
Features

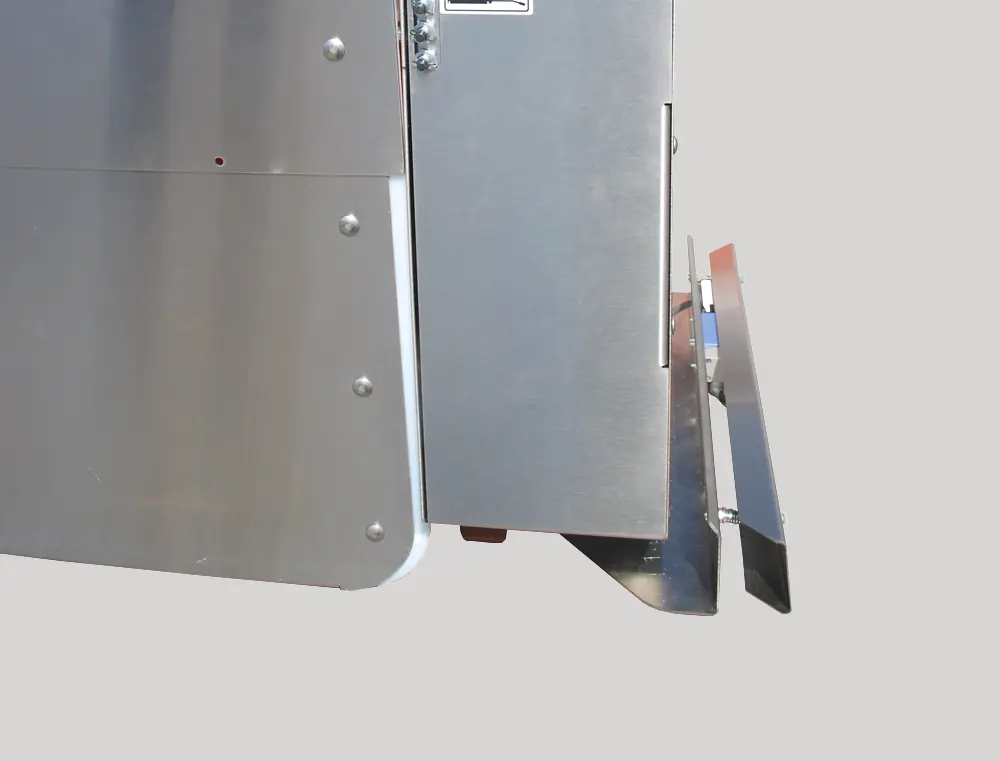

Reinforced bumpers
Bumpers on both sides of the DAF are now attached with 4 bolts for longer durability.

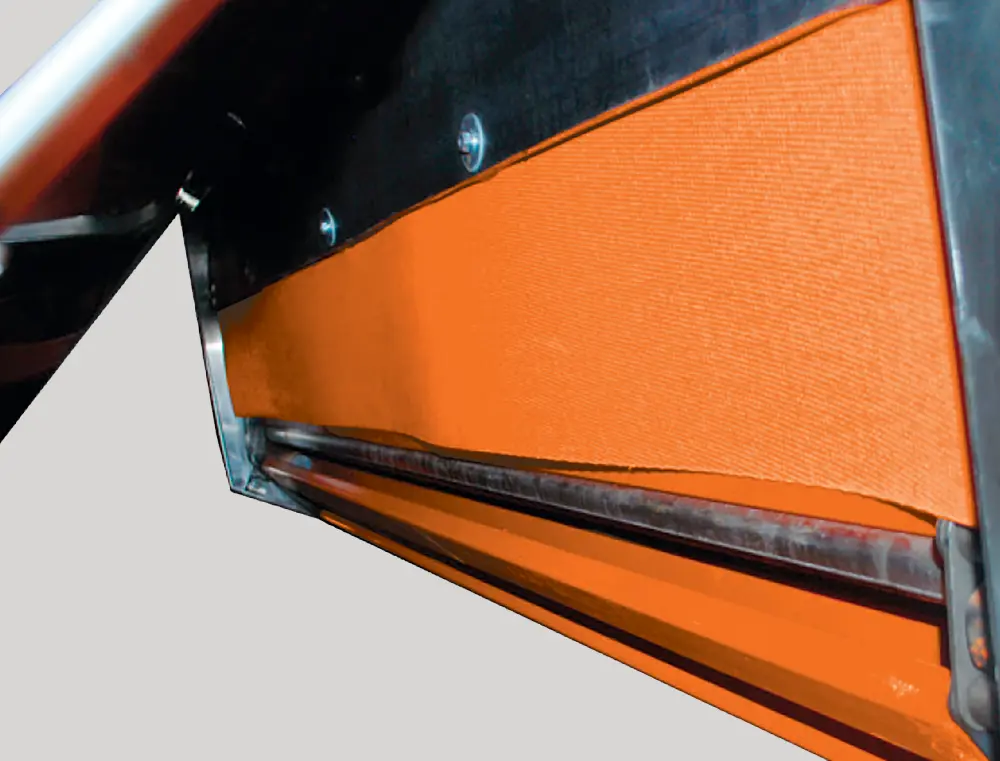

Door restrictor
A flexible restrictor is installed at the discharge door to avoid any form of leaking when loading

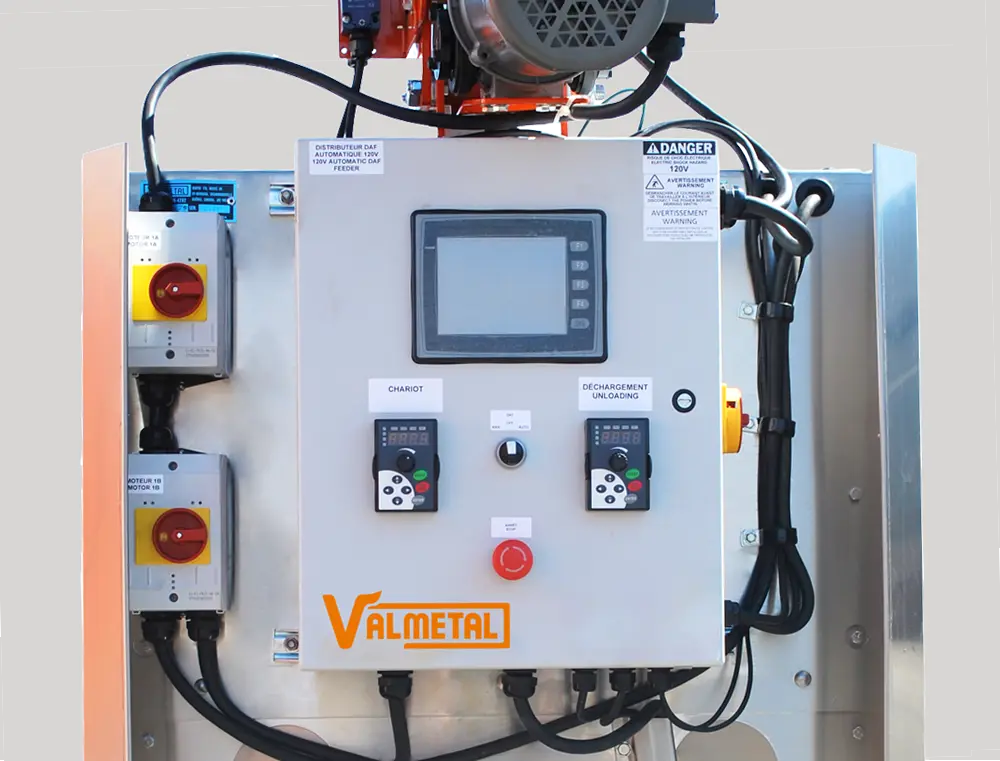

Control panel
Travel and unloading speeds can be programmed via the control panel (by group) according to recipes.

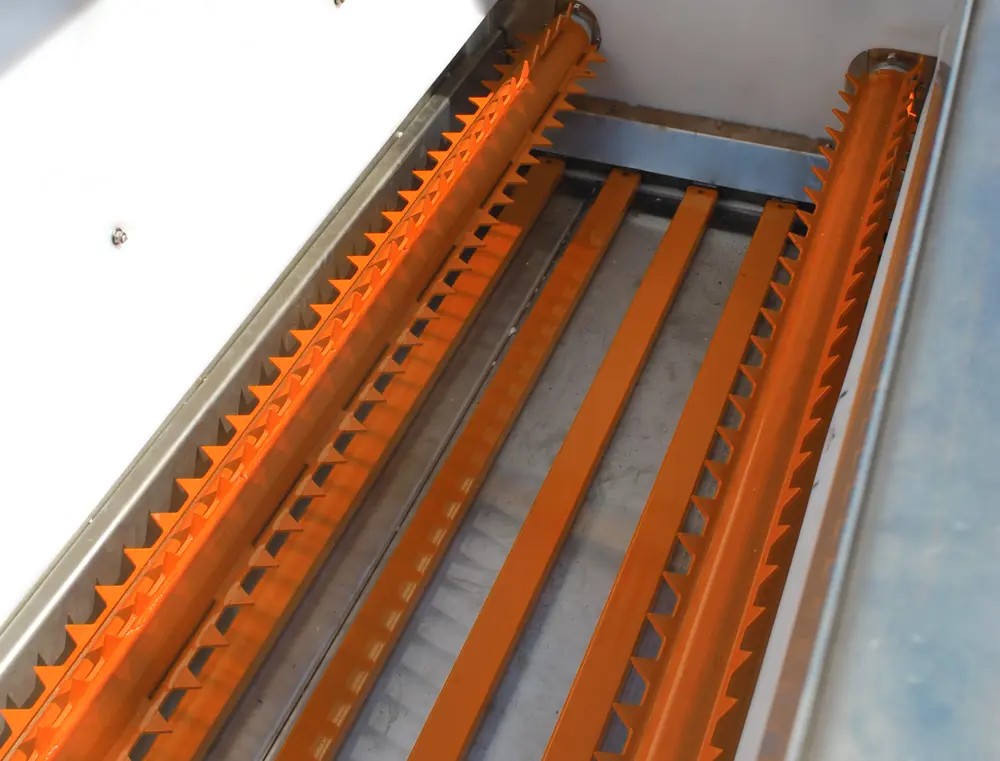

Sturdy fabrication
With few moving parts and a very efficient cycloidal transmission, the inside of the DAF is fully covered with ultra-abraison resistant polymer.
| 36'' (92 cm) Radius |
||||||||
| 12'' (30 cm) Space | 14'' (36 cm) Space | |||||||
| Model | A | B | C | D | A | B | C | D |
| 2’’ x 72’’ (81 x 183 cm) |
48'' (122 cm) | 70'' (178 cm) | 28'' (71 cm) | 21'' (53 cm) | 50'' (127 cm) | 63'' (160 cm) | 34'' (86 cm) | 21'' (53 cm) |
| 37’’ x 72’’ (94 x 183 cm) |
53'' (135 cm) | 74'' (188 cm) | 30,5'' (77 cm) | 23,5''(60 cm) | 55'' (140 cm) | 67'' (170 cm) | 36,5'' (93 cm) | 23,5'' (60 cm) |
| 42’’ x 72’’ (107 x 183 cm) |
58'' (147 cm) | 76''(193 cm) | 33'' (84 cm) | 26'' (66 cm) | 60'' (152 cm) | 70'' (178 cm) | 39'' (99 cm) | 26'' (66 cm) |
| 47’’ x 72’’ (119 x 183 cm) |
63'' (160 cm) | 79'' (201 cm) | 35,5'' (90 cm) | 28'' (71 cm) | 65'' (165 cm) | 73'' (185 cm) | 41,5'' (105 cm) | 28'' (71 cm) |
| 48'' (122 cm) Radius | ||||||||
| 12'' (30 cm) Space | 14'' (36 cm) Space | |||||||
| Model | A | B | C | D | A | B | C | D |
| 2’’ x 72’’ (81 x 183 cm) |
48'' (122 cm) | 72'' (183 cm) | 28'' (71 cm) | 21'' (53 cm) | 50'' (127 cm) | 65'' (165 cm) | 34'' (86 cm) | 21'' (53 cm) |
| 37’’ x 72’’ (94 x 183 cm) |
53'' (135 cm) | 76'' (193 cm) | 30,5'' (77 cm) | 23,5''(60 cm) | 55'' (140 cm) | 69'' (175 cm) | 36,5'' (93 cm) | 23,5'' (60 cm) |
| 42’’ x 72’’ (107 x 183 cm) |
58'' (147 cm) | 78''(198 cm) | 33'' (84 cm) | 26'' (66 cm) | 60'' (152 cm) | 72'' (183 cm) | 39'' (99 cm) | 26'' (66 cm) |
| 47’’ x 72’’ (119 x 183 cm) |
63'' (160 cm) | 81'' (206 cm) | 35,5'' (90 cm) | 28'' (71 cm) | 65'' (165 cm) | 75'' (191 cm) | 41,5'' (105 cm) | 28'' (71 cm) |
