Benefits
- 2 in 1: unloader and distributor.
- Low maintenance: design minimizes parts and eliminates blowers, pulleys and belts.
- Less climbing in the silo: no blower means no doors to change.
- Excellent distribution as the auger spreads silage evenly right up to the wall during filling.
- Easy operation: complete control via the main panel.
- Direct auger drive via powerful helical gearbox
- 16” (41 cm) auger for maximum capacity
- Large diameter ring ensures smooth operation
- Hermetically sealed industrial collector ring
- Ammeter panel with remote control
- Motorized winch with automatic control Optional
2 drive systems

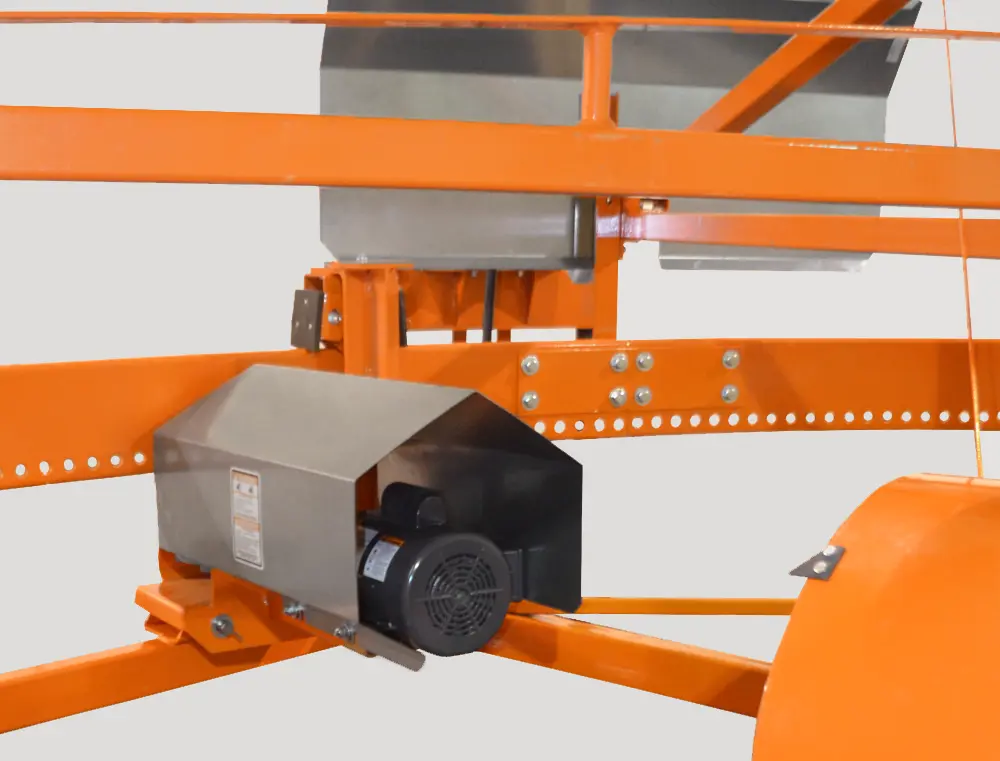

- Independent drive system: Rotates the unloader in the silo; industrial coupling between the motor and the gearbox ensures a positive drive.

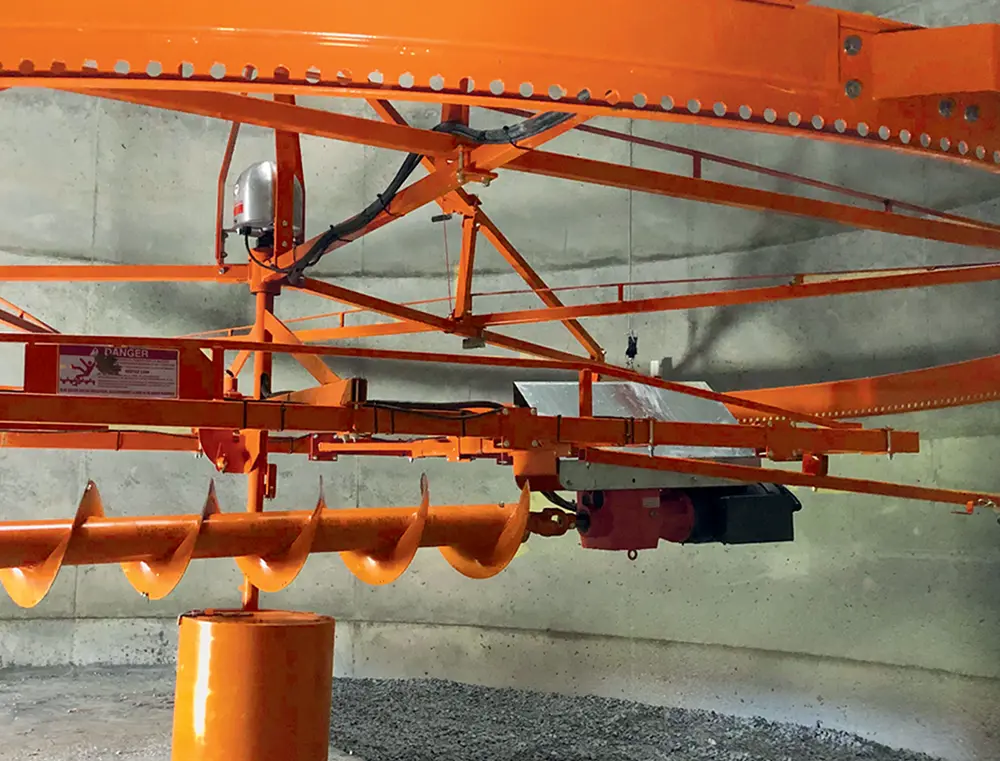

- Direct drive system: Direct-drive gearbox with high-performance helical gears drives the 16-inch diameter (41 cm) auger; eliminates belts and pulleys for greater efficiency and less maintenance.
Features
Heavy-Duty Electric Hoist
The high capacity winch handles up to 150’ (46 m) of cable, powered by enclosed oil-bath gears.
Wall Cleaner
Equipped with 6 replaceable hardened steel blades to keep silo walls free of frozen materials.

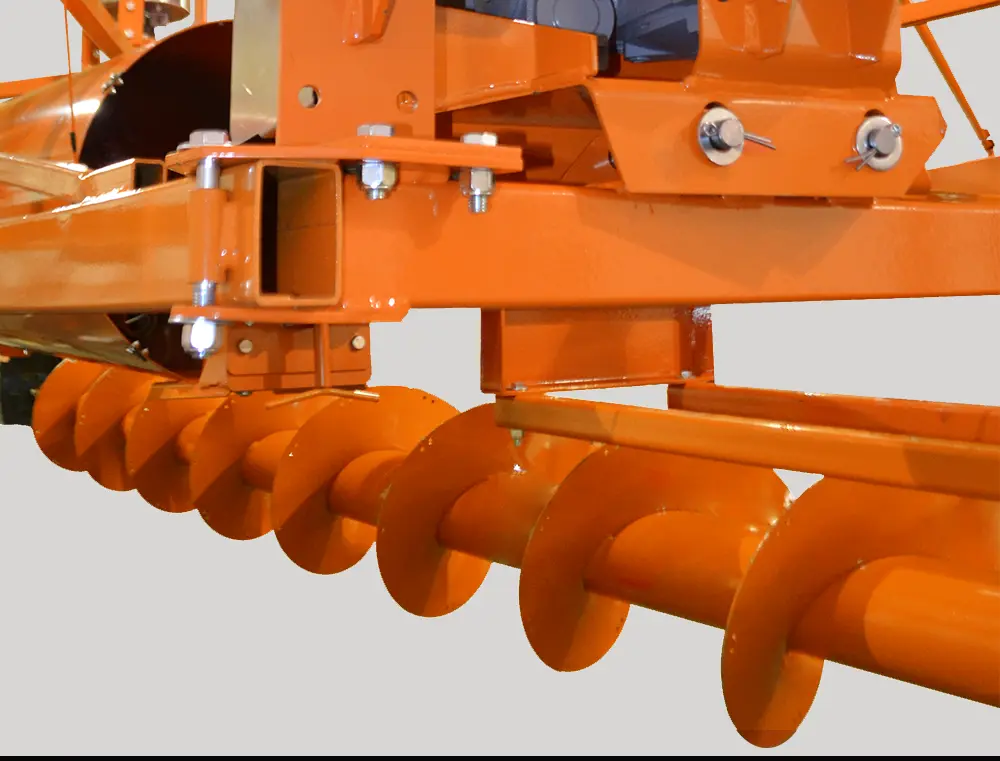

16-inch (41 Cm) Heavy-Duty Auger
Made of 5/16" (8 mm) thick steel welded to a 4" (10 cm) heavy wall tube. End of auger is fitted with high-carbon steel knives, hardened and sharpened to better chew through frozen silage.

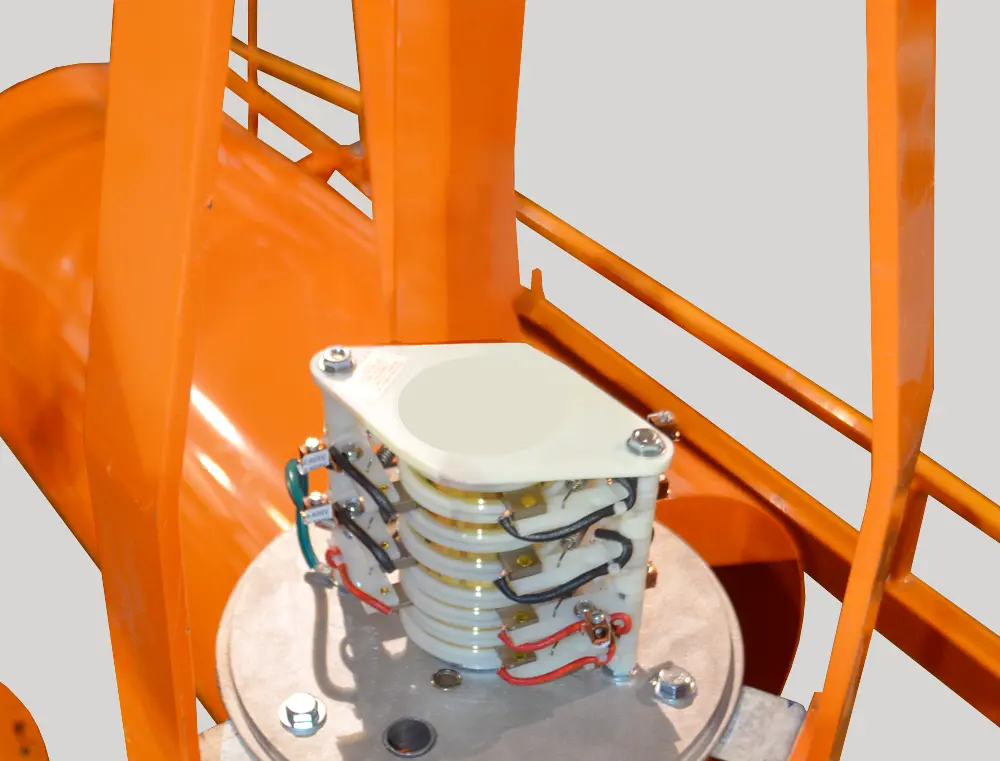

Totally Enclosed Collector Ring
Electrical power is transferred from the stationary to the rotating part of the machine by extra-large brushes and thick copper alloy rings. Large taper roller bearings inside the housing support the machine.
| Silo diameter | 22' (6.7 m) | 24' (7.3 m) | 26' (7.9 m) | 30' (9.1 m) |
| Ring diameter | 15' (4.6 m) | 15' (4.6 m) | 19' (5.8 m) | 19' (5.8 m) |
