Benefits

  • Heavy impeller = stable operation and less vibration.
  • Uniform feeding with the high capacity auger.
  • More paddles, therefore longer paddle replacement intervals.
  • Competitive price.
  • Large hopper intake area
  • Heavy 8-paddle fan
  • Adjustable shear bar
  • Heavy PTO drive line with overrunning clutch
  • Water hose connection
Efficiency

Efficiency

  • Our forage blowers have unmatched capacity and are compatible with a wide range of tractor power.
  • The oversize intake and auger feed a rotor capable of filling silos as high as 150 ft (46 m).
  • The auger engagement lever is ergonomic and safe.
  • Hinged guards provide easy access for maintenance and adjustments.
  • PTO shear bolts are stored on the driveshaft guard for handy access.

Features

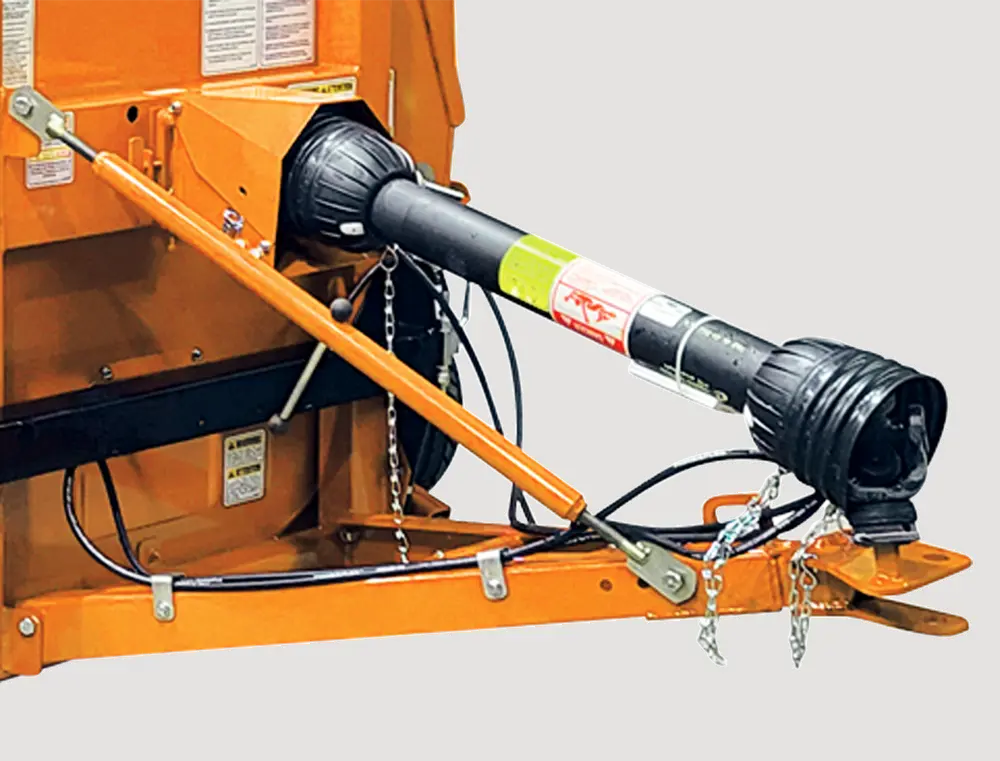

Overrunning clutch

Overrunning clutch

Paired with high torque rating PTO shaft, the overrunning clutch protects the blower drive components and the tractor from variations in the load.

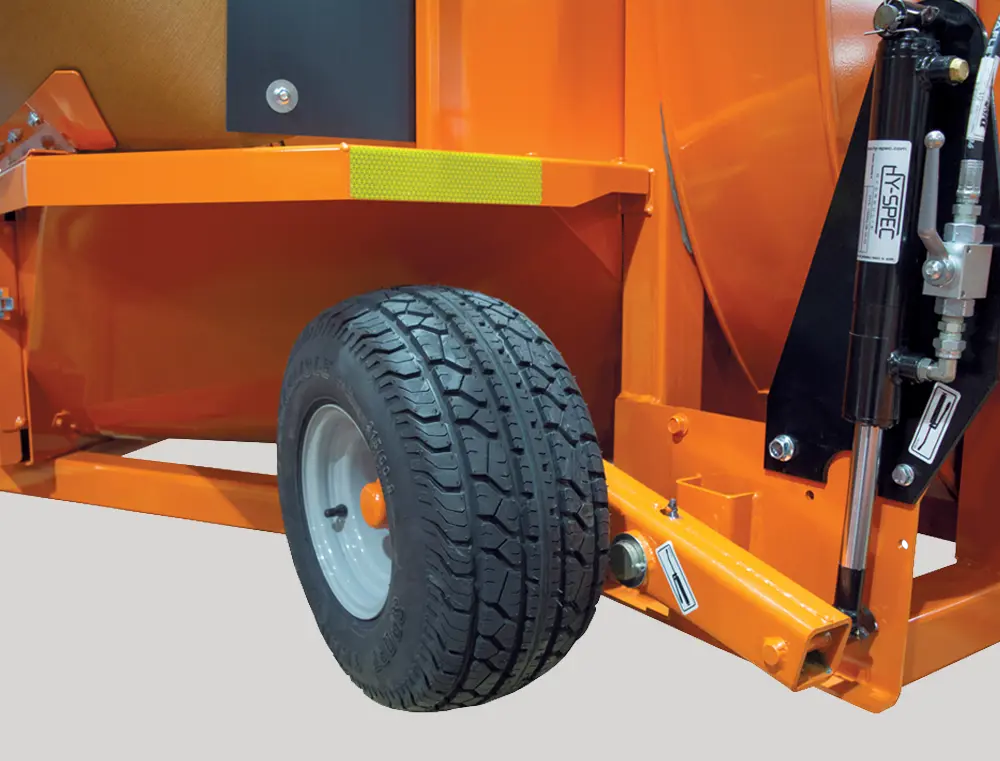

Hydraulic wheel adjustment

Hydraulic wheel adjustment

The transport wheels are independently adjustable by hydraulic cylinders for easy positioning of the blower. The powerful wheels are mounted on hubs with tapered bearings.

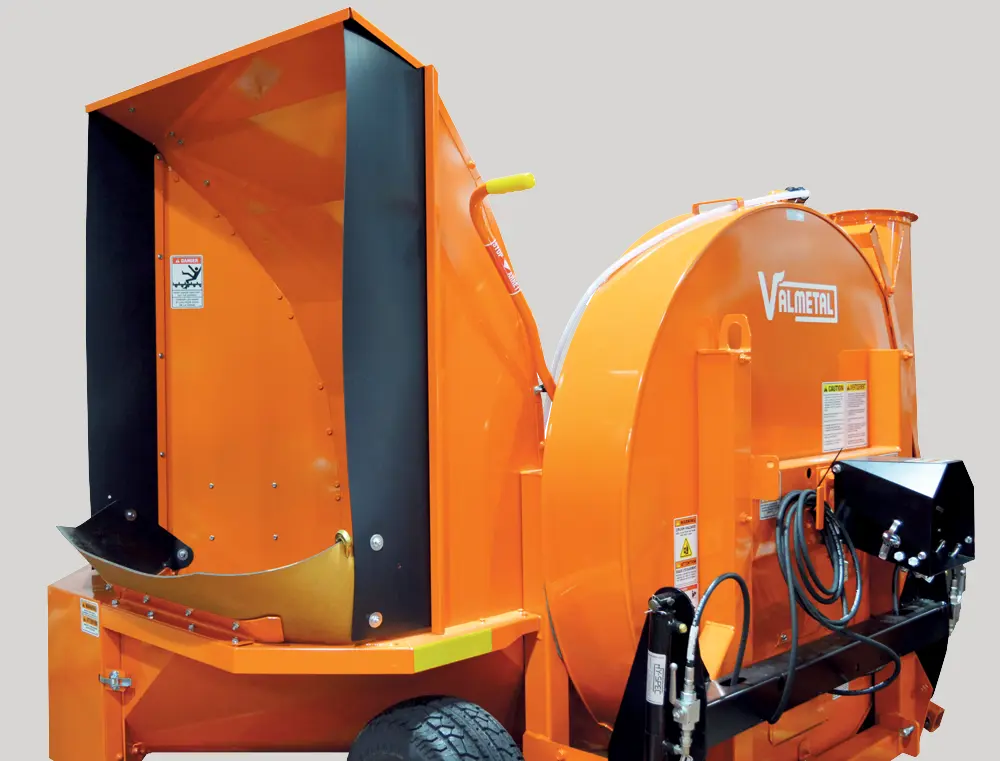

Largest intake table on the market

Largest intake table on the market

Our forage blowers offer an oversized intake table capable or accepting high throughput without bridging or clogging. The 14’’ (36 cm) Ø auger easily outperforms the competition.

Rotor

Rotor

The 59’’ (1.5 m) rotor is equipped with 8 heavy-duty, heat-treated paddles. The rotor of the 59V HV lifts 86 paddle loads per second, delivering unmatched capacity and the smoothest operation.

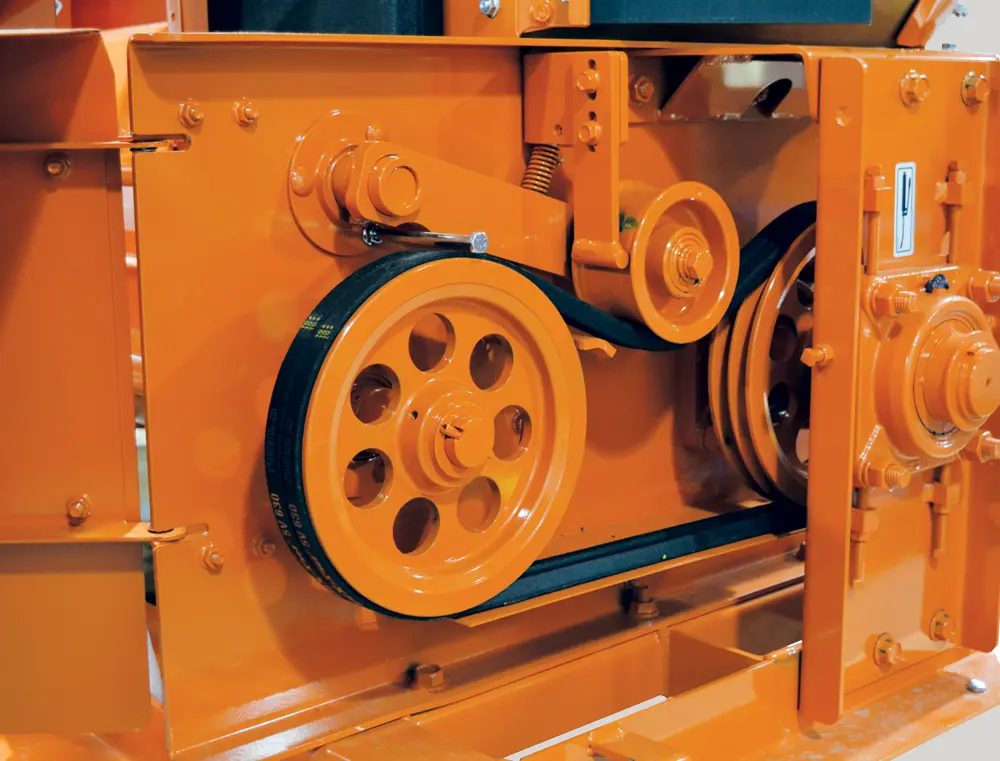

Extra-heavy drive system

Extra-heavy drive system

The feed auger is driven by 2 pairs of 5 VX cogged belts capable of transmitting all the required power. All pulleys are cast iron, double belted and double bearing mounted for unmatched longevity. The large 2” (5 cm) Ø auger shaft is supported by premium cast iron flange bearings.

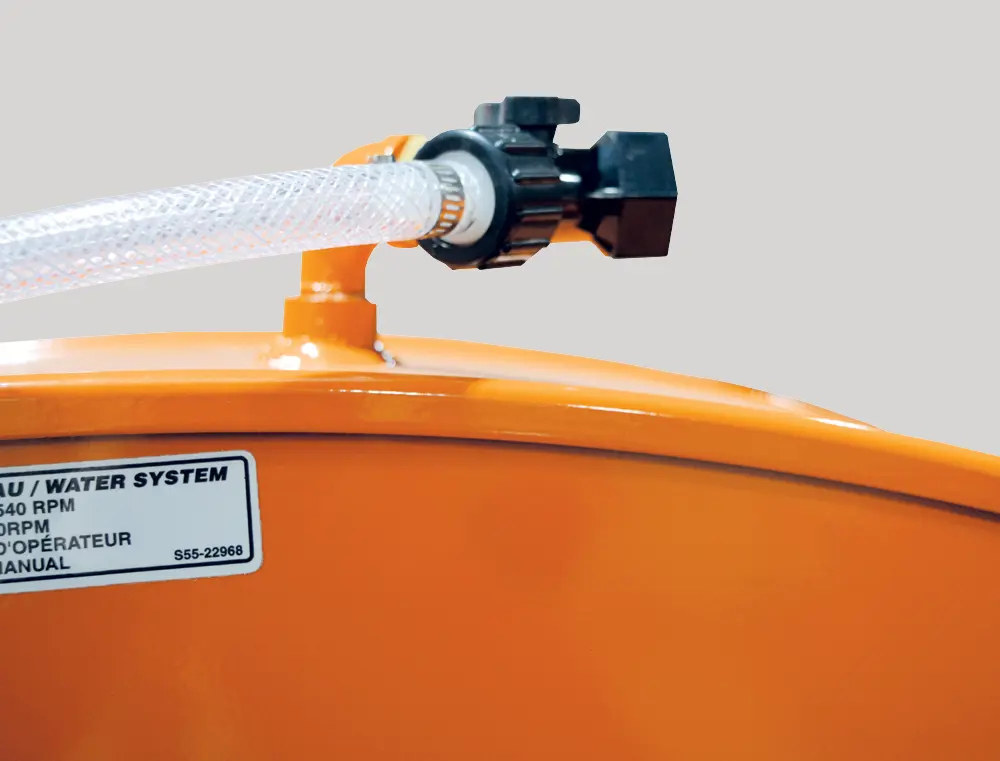

Water intake

Water intake

2 water intakes are standard equipment, providing lubrication to the rotor band and auger trough. The double-spray is effective at preventing lignin build-up, thereby keeping power requirements low

Specifications

  V59 Model V59 HV Model
PTO RPM 540 RPM 1000 RPM
Rotor Speed 540 RPM 650 RPM
# of paddles 8 paddles
Diameter 59'' (1.5 m)
Width 9'' (23 cm) - Pipe diameter
Ejection speed 97 mph (155 km/h) 118 mph (188 km/h)
Standard auger Dameter 14'' (36 cm)
Fligh 14'' (36 cm)
Intake Height 74'' (188 cm)
Width 44'' (112 cm)
Depth 30'' (76 cm)
PTO overruning clutch Standard
Overload protection Shear bolt
Hydraulic wheel adjustment Standard
Wheels 18-1/2'' x 8-5/8'' (47 cm x 22 cm) on conical bearings
Weight

1,500 lb (680 kg)

Recommended power Minimum 1 hp per foot of silo height / Minimum 60 hp 1 hp per foot of silo height / Minimum 100 hp
