Benefits
- Transfers thick manure with long bedding, no pre-mixing required.
- Low energy consumption.
- Pressure-activated reversing switch provides smooth reversing with maximum reliability.
- Wide range of hoppers to suit all barn configurations.
- 7.5 or 10 HP hydraulic unit
- 20’’ (51 cm) hopper or 16’’ (41 cm) suction inlet from pre-pit
- 16’’ (41 cm) Ø discharge pipe for steel or PVC pipe
- 20’’ (51 cm) Ø machined stainless steel pumping cylinder
- Pumping chamber with thick guillotine doors
- Replaceable hopper

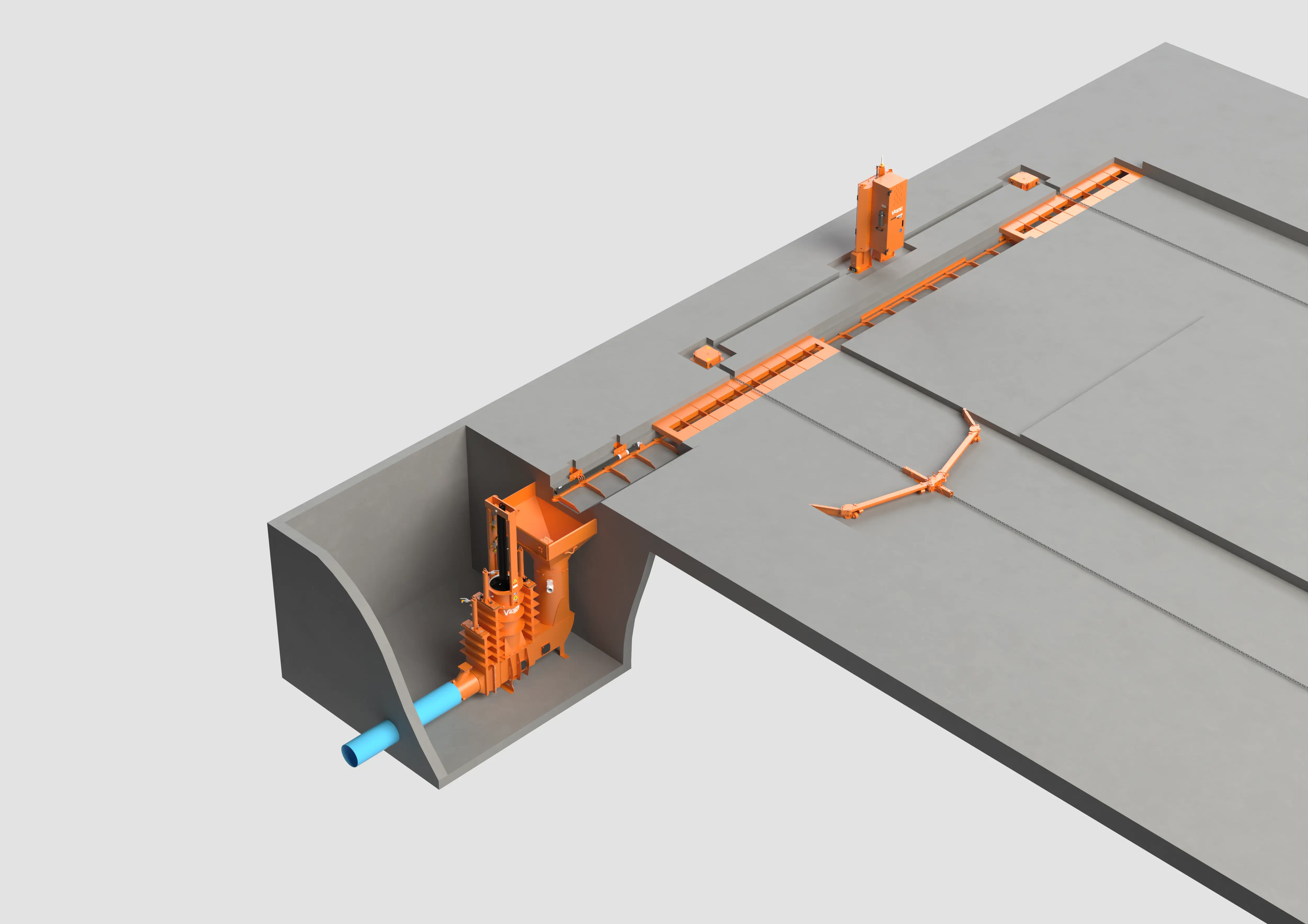

Dry pit or half-buried with a shallow pit installations
The Solid-Trans may be installed in a dry pit or may be half-buried with a shallow pit providing service access. Sub-floor installation for minimal space.
Manure is transferred to storage through 16” (41 cm) steel or PVC pipe.
Tall hoppers for free stall cross gutter eliminates risk of flooding
