Benefits
- Heavy duty construction and easy swing-open access.
- Modular design makes service simple with easy access to all parts.
- High quality, self-aligning seals and gaskets maintain the liquid prime between loads.
- Accessories offer endless combinations to fit every need.
- 5-seal oilbath bearing chamber
- Oil bath bearings
- Swing-open door
- Quick-drain port
- Self-aligning seals
- Self-priming Optional

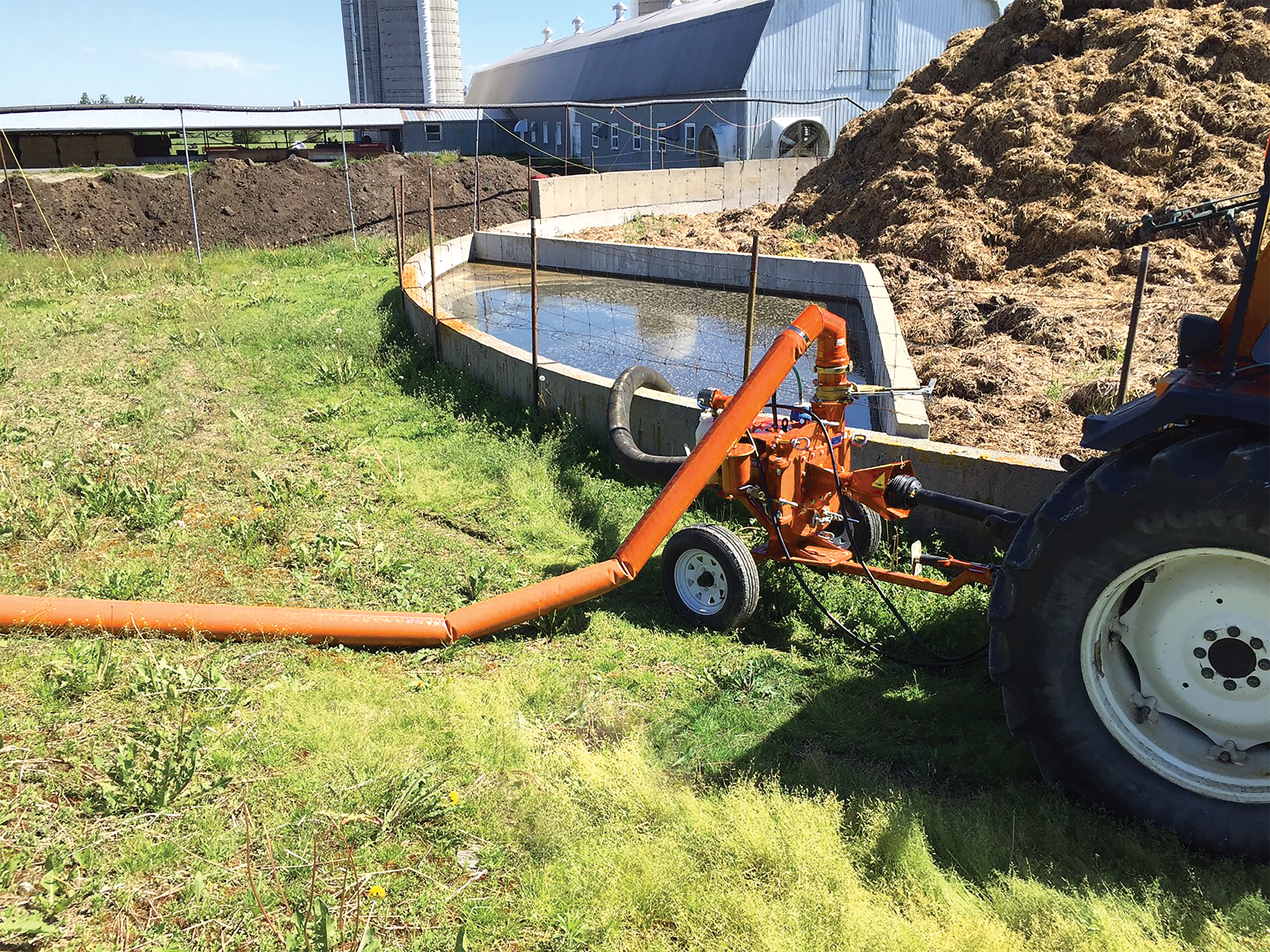

Operates in 3 modes
Maximum flow - 1000 RPM operation delivers 4,000 US gpm (909 m3/h) in tanker loading setup.
Maximum distance – 1000 RPM operation delivers up to 90 ft (27 m) of head pressure.
Lowest power – 540 RPM operation loads out 2,000 US gpm (454 m3/h) at only 60 HP.
Trailer or 2-point hitch models
Trailer: Convenient to connect or move around, the trailer model is nicely balanced for easy one-man maneuvering.
2-point hitch: Much easier to attach than 3-point hitch models. Eliminating the upper arm also makes PTO installation more accessible.

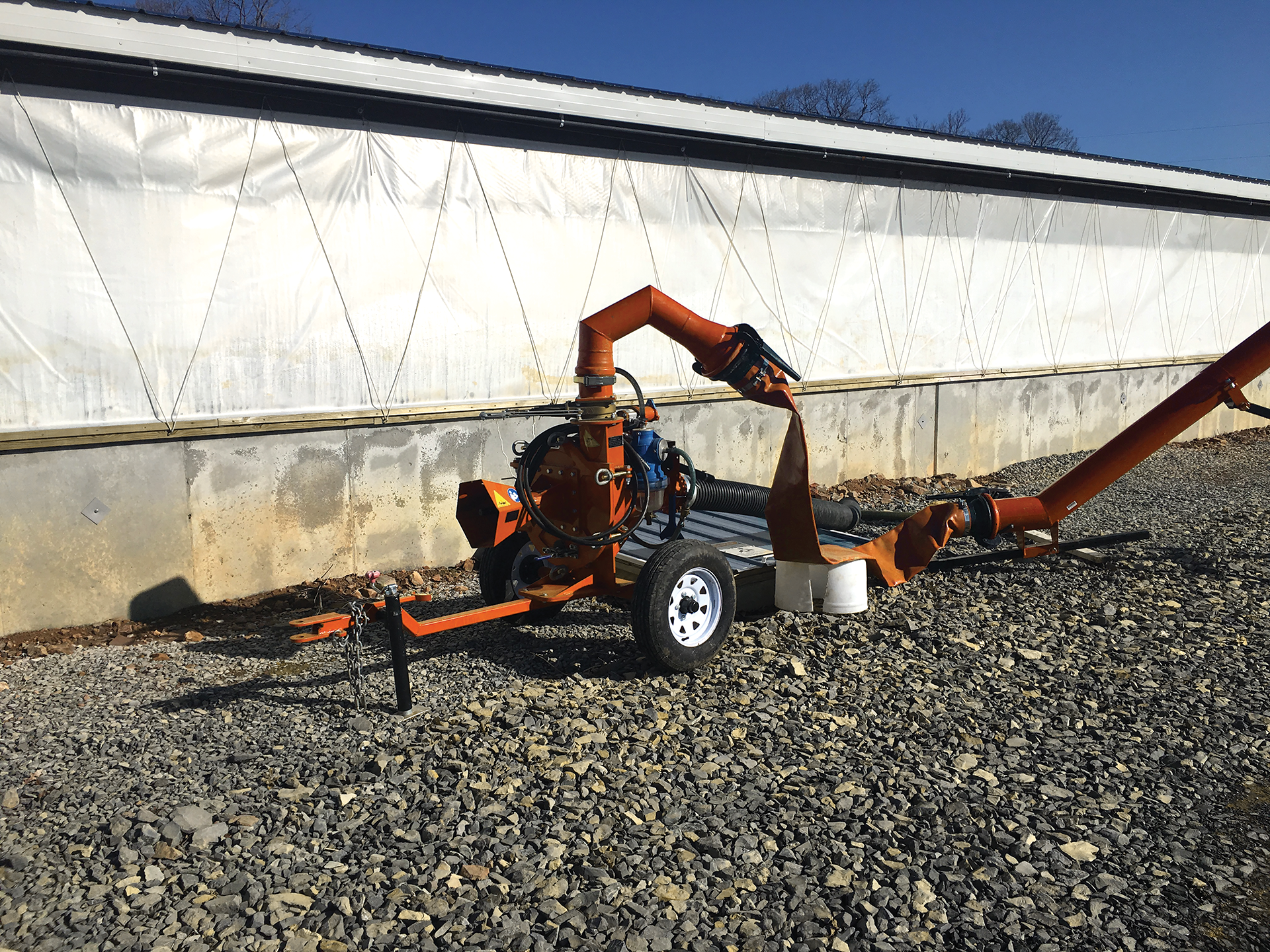

Farm-Ready Pump
Our pump is versatile, built to handle a range of tasks on the farm, including:
- Hog barn agitation & load-out
- Runoff basins
- Tanker transfer
- Emergency pump-out

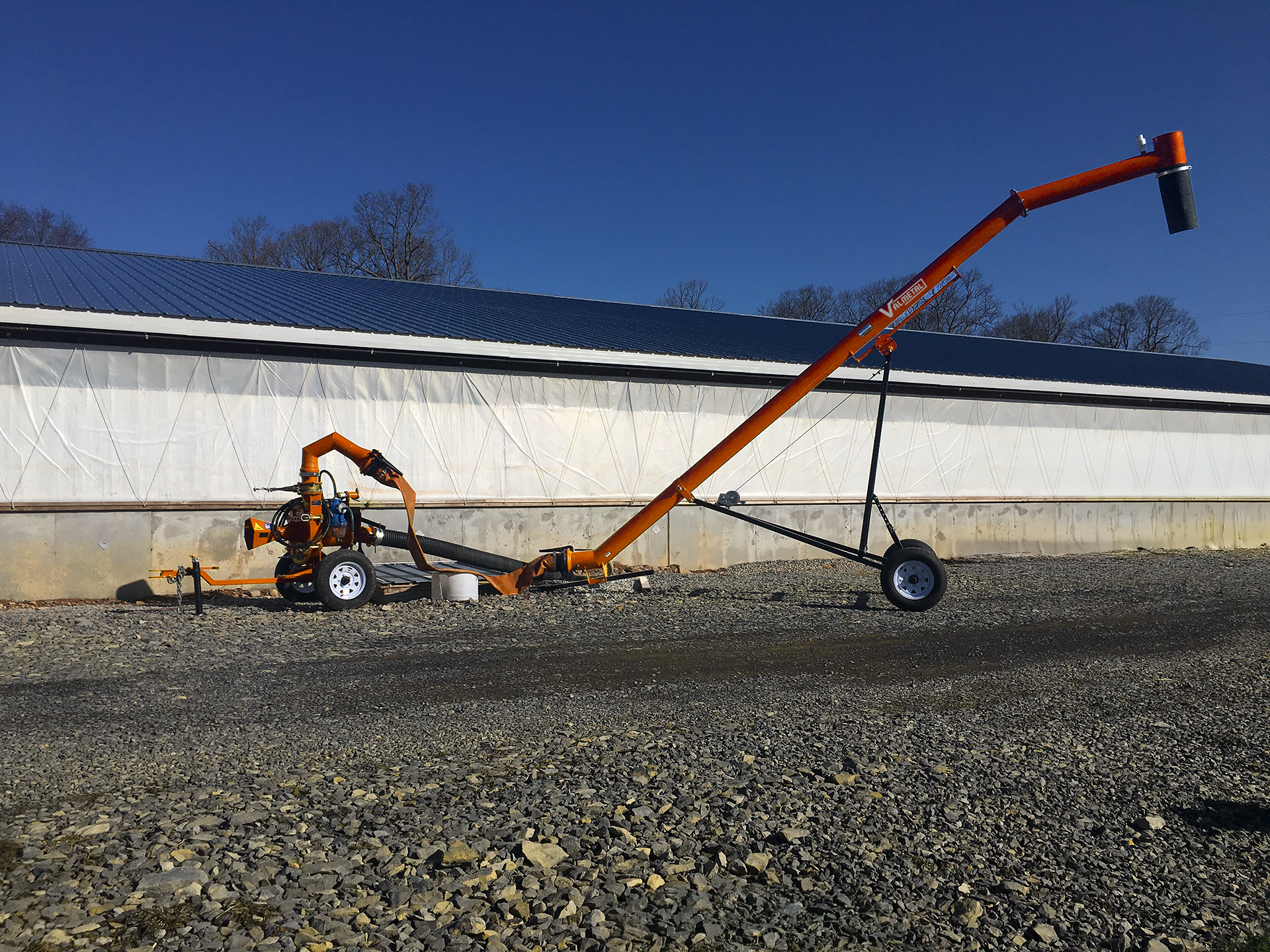

Complete with accessories
Valmetal offers a wide range of 6” (15 cm) and 8” (20 cm) accessories to complete your Vacu-Pump connections. Outlet accessories can be assembled in endless combinations to fit every need. These heavy duty components are rock solid and powder-coated for long life. The inlet vacuum hose is equipped with a camlock quick connector for easy set up. Choose either the strainer inlet for pits or choose the quick coupler for truck transfer connections.
- Bi-Pod loading pipe connectors
- Load cart/hose connectors
- Double outlet connections
Features

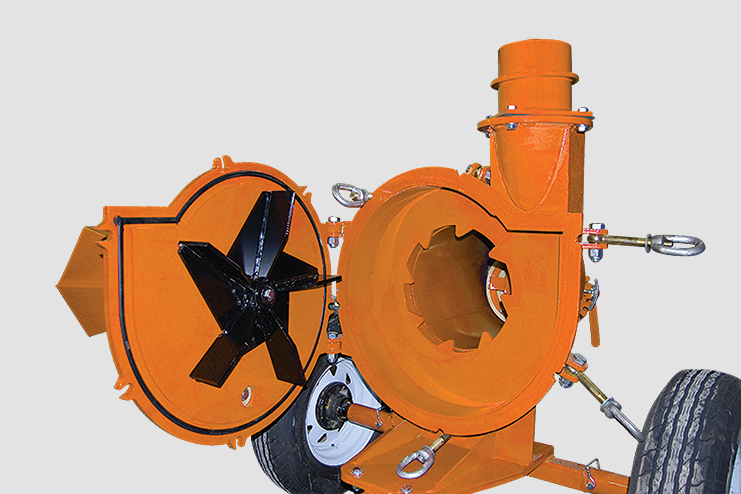

HD swing-open door
The swing-open door makes clearing out a rock or other debris fast and simple.
MT-Series impeller
The rugged MT-Series impeller features a cast iron 5-seal oilbath bearing chamber to support and protect the drive shaft bearings.

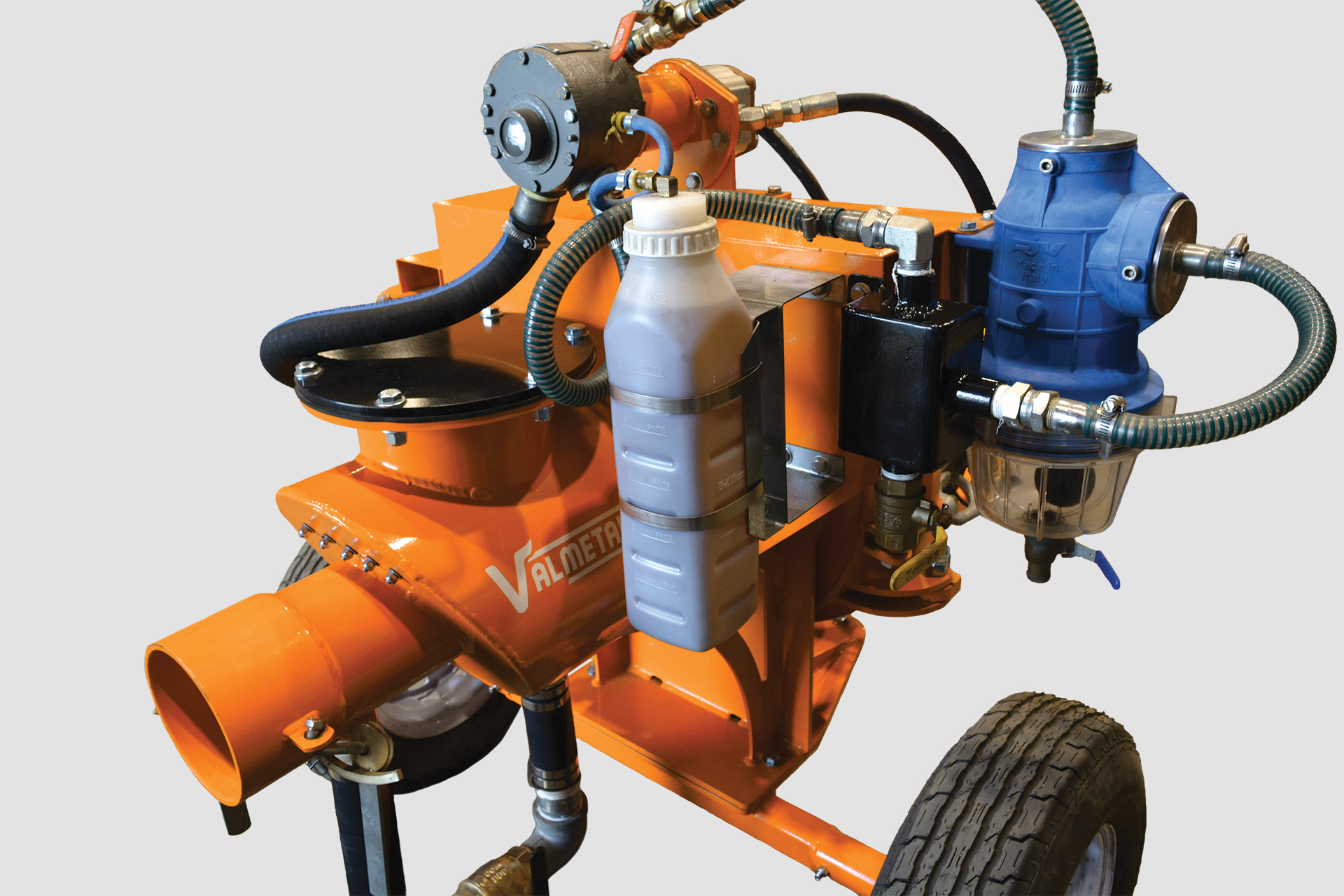

Self-priming option
The self-priming option gets you pumping sooner. Just push the control handle and the dependable vacuum pump quickly pulls manure up the inlet hose to fill the pump chamber completely. When priming is complete, simply open the outlet gate valve (included with option) and start the tractor PTO.
| Pump | ||
| Power | 540 rpm | 1000 rpm |
| Required horsepower | 60 HP | 100 HP |
| Impeller | Ø 18.5" (47 cm) x 5 blades | Ø 18.5" (47 cm) x 4 blades |
| Max. capacity | Up to 2900 US gpm (659 m3/h) | Up to 3600 US gpm (818 m3/h) |
| PTO shaft | At choice: ASAE S304.14 – 35" to 59" (89 cm to 150 cm) cross to cross with shear bolt | |
| Drive bearing | Oil bath bearing chamber, tapered roller bearings | |
| Oil bath oil | 80W90 mineral oil / 1.2 US gal. (4.5 L) approx | |
| Inlet adaptor | Ø 6” (15 cm) Barb for suction hose | |
| Outlet adaptor | Ø 6” (15 cm) Gheen male | |
| Gate valve | Ø 6” (15 cm) manually operated | |
| 2-point hitch (option) | Category II or III hitch (standard ASAE S217.12) | |
