Benefits

  • Increased capacity. Choose any size of cable without limiting alley length.
  • Allows flexible setup. The system adapts to all barn configurations.
  • Gas-lift hood at each end, no need to remove guards.
  • The self-guiding drum eliminates cable guides and maximizes cable life.
  • Increased life. Few moving parts, none are located in the manure zone.
  • Operates completely silently.
  • Drum made of abrasion-resistant steel for long life.
  • High-efficiency XL gearbox
  • Models NC-300 and NC-500 made of AR200 steel and model NC-650 made of Hardox 450 steel
  • HD roller chain with oilbath
  • Drum automatically self-aligns with cable
  • No cable guide system needed
  • No timing chains & sprockets
  • Riser wheel kit Optional
The ultimate in simplicity

The ultimate in simplicity

As the drum rotates, it self-winds across the threaded main shaft so cable spools on smoothly.

The strongest cable drive units on the market!

The strongest cable drive units on the market!

The NC-650 model is the unit of choice for the world’s largest barns. Able to handle up to 650’ (198 m) of 9/16” (14 mm) cable, one unit can clean two alleys up to 2,550’ (777 m) long.

Maximum flexibility

Maximum flexibility

The Nova-Cable drive unit adapts to all barn configurations. Corner wheels can be positioned as close to the transmission as desired. With the optional riser wheel kit, the drive unit can be mounted anywhere you wish, giving you complete control of layouts. Save space at the end of the barn, requires 2’ (60 cm) less barn length than conventional drive units.

Scraper blades & corner wheels

Scraper blades & corner wheels

Valmetal offers a wide choice of blades and accessories for every condition. Blade edges are available in steel, urethane or our new abrasion-resistant rubber. Whether you choose straight (rollback) or V-blades, all wear parts are easy and economical to replace.

Automation

Automation

The Scraper-Boss PRO control provides the best animal protection in the business. This user-friendly control is packed with features, able to control other parts of your manure system, and may be operated by phone or tablet using the Valmetal app.

Features

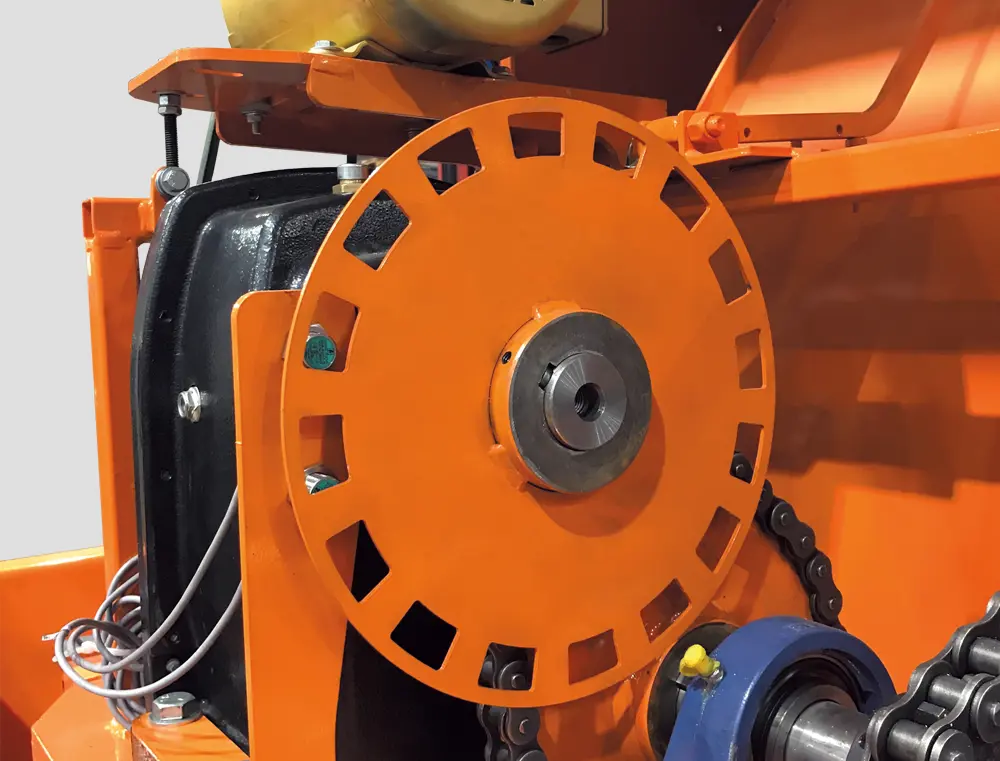

Encoder wheel

Encoder wheel

Sensors count the revolutions of the gearbox to track the positions of the scraper blades. Setting the start & stop positions needs only a touch on the control, and is accurate to a fraction of an inch.

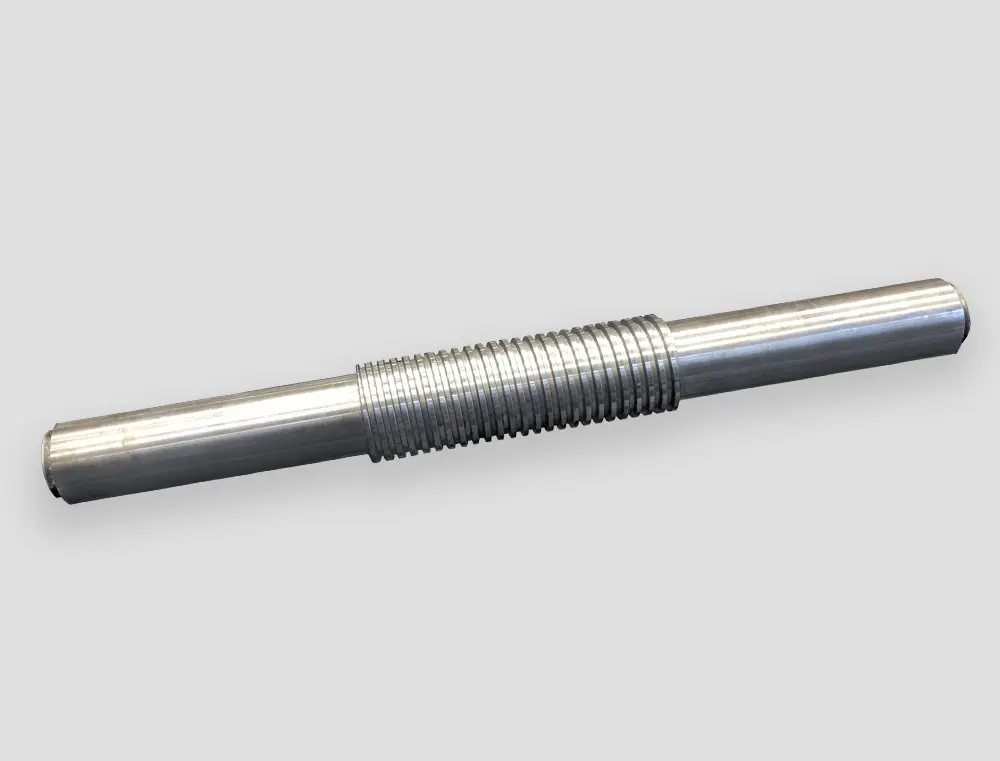

One moving part

One moving part

The cable drum is threaded, so as it turns on the 5” (13 cm) diameter threads on the stationary shaft, it automatically aligns itself to keep the cable spooling cleanly in place, while eliminating the need for cable guide shafts and drives.

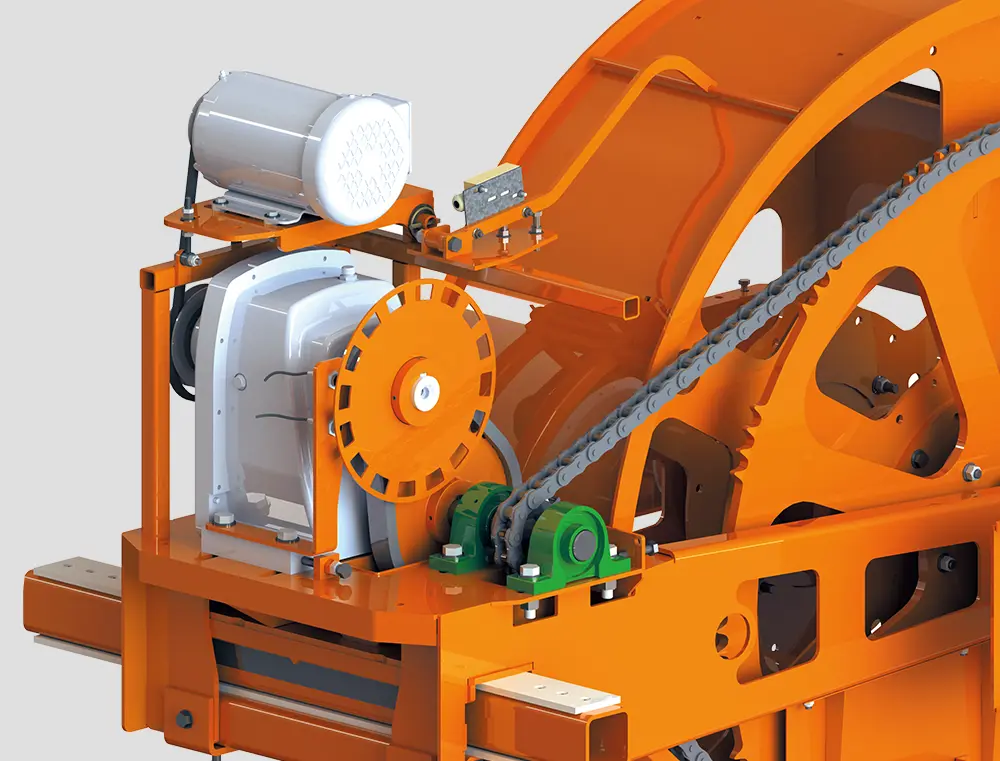

Low maintenance

Low maintenance

The drum hub & shaft are encased in a grease chamber to keep all components clean and lubricated. The Nova-Cable drive has very few moving parts, making maintenance easy.

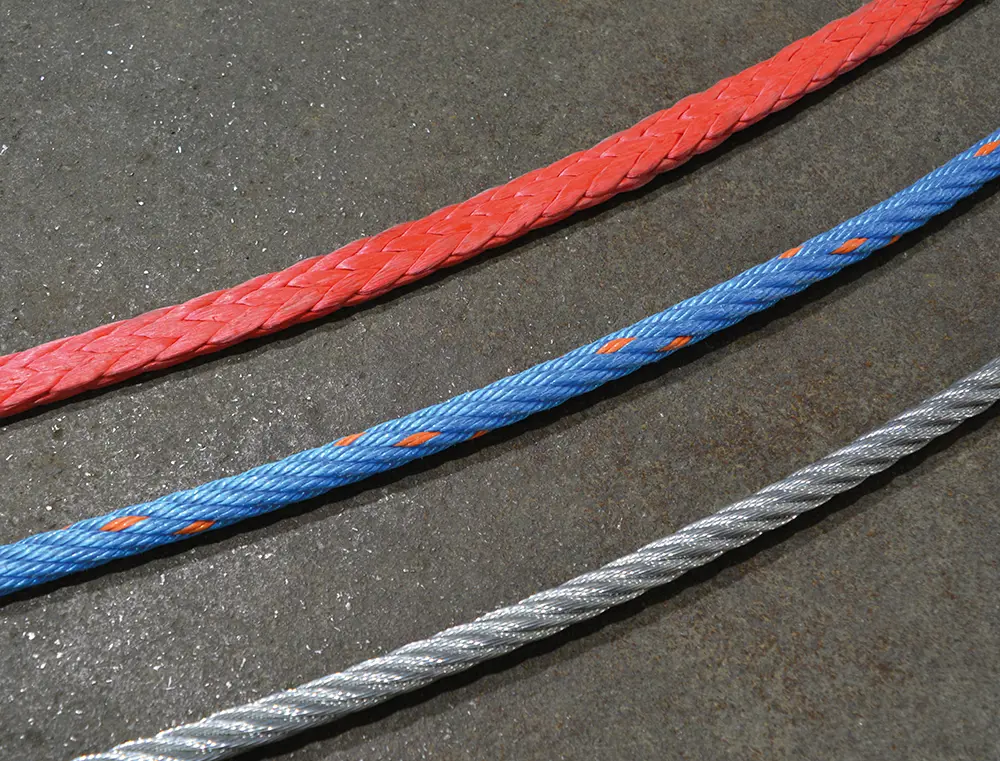

Cables

Cables

Nova-Cable works with all types of cable from 3/8” (10 mm) to 9/16” (14 mm) diameter. Choose steel cables (galvanized or stainless), or braided plastic cables (Dura-Cable or Dyneema), or the heavy-duty stainless & polyester hybrid cable (9/16” (14 mm) only).

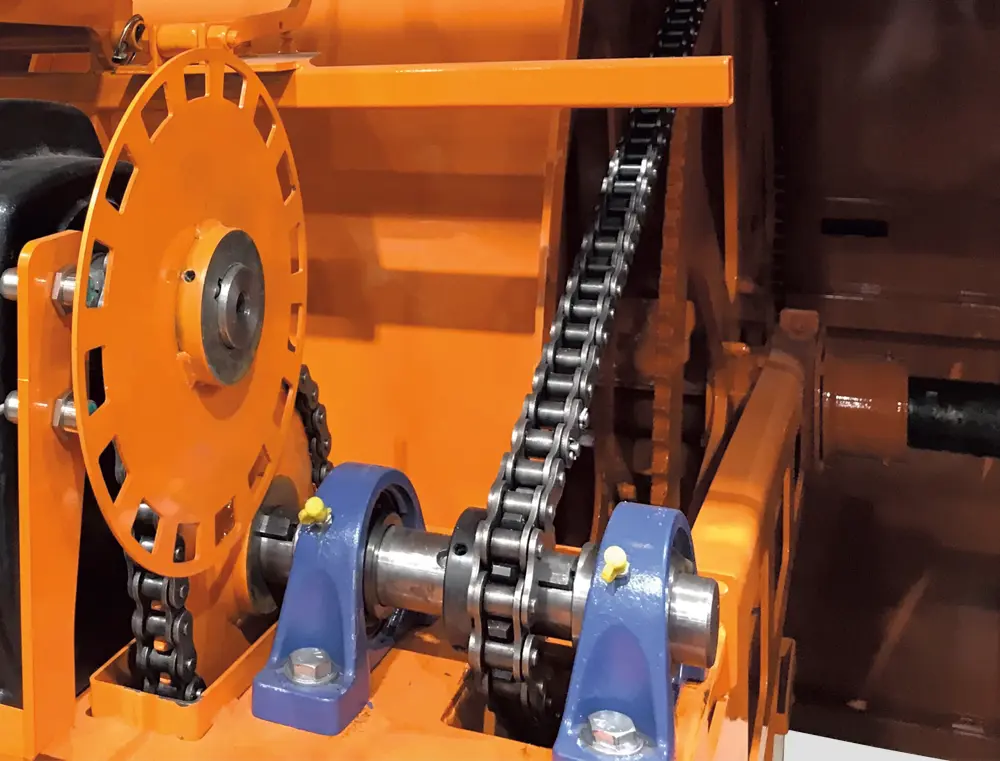

Two-stage drive

Two-stage drive

The two-stage drive protects the gearbox bearings from heavy loads, giving Nova-Cable unmatched pulling power and trouble-free gearbox life. The drive sprocket is positioned to the side of the drum, keeping it far from any manure exposure.

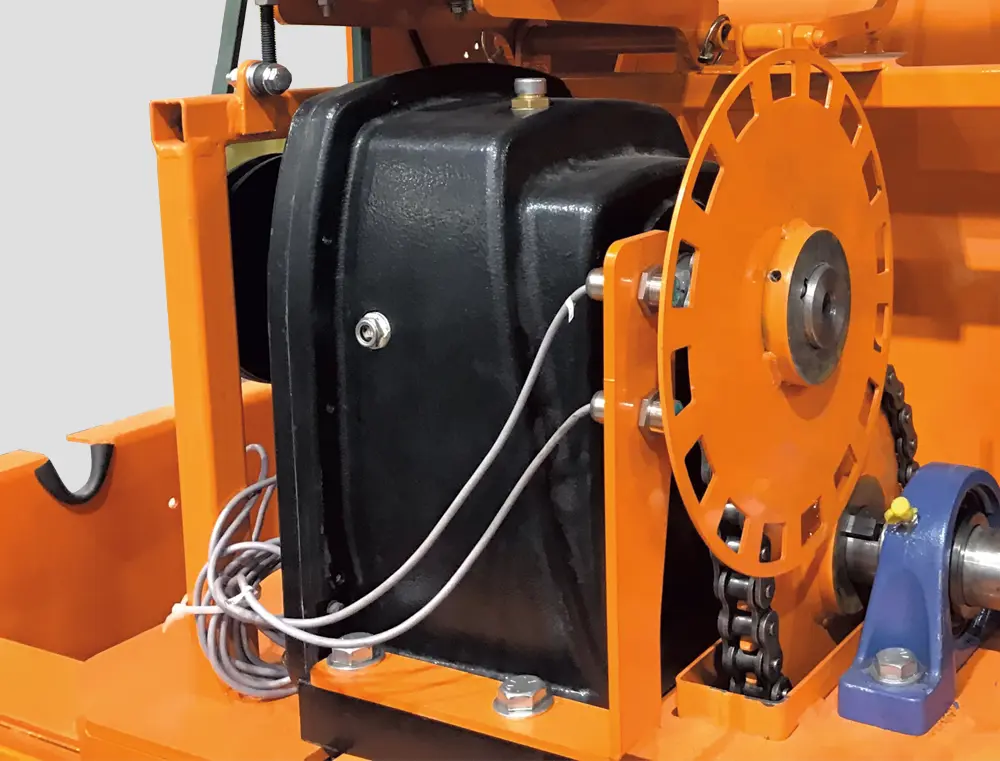

XL gearbox

XL gearbox

Many alley scrapers run around the clock, so all models of Nova-Cable drive units are equipped with the proven XL gearbox. This helicoid gearbox operates at 95% efficiency, saving power and delivering long life.

Specifications

Model Stroke* Length Width Height Weight
NC-300 300' (91 m) 87'' (221 cm) 47'' (119 cm) 63'' (160 cm) 2,600 lb (1,179 kg)
NC-500 500' (152 cm) 93'' (263 cm) 62'' (158 cm) 73'' (185 cm) 3,100 lb (1,406 kg)
NC-650 650' (198 cm) 116'' (285 cm) 62'' (158 cm) 97'' (246 cm) 3,800 lb (1,725 kg)

*Stroke capacity for all cable sizes.
